Description

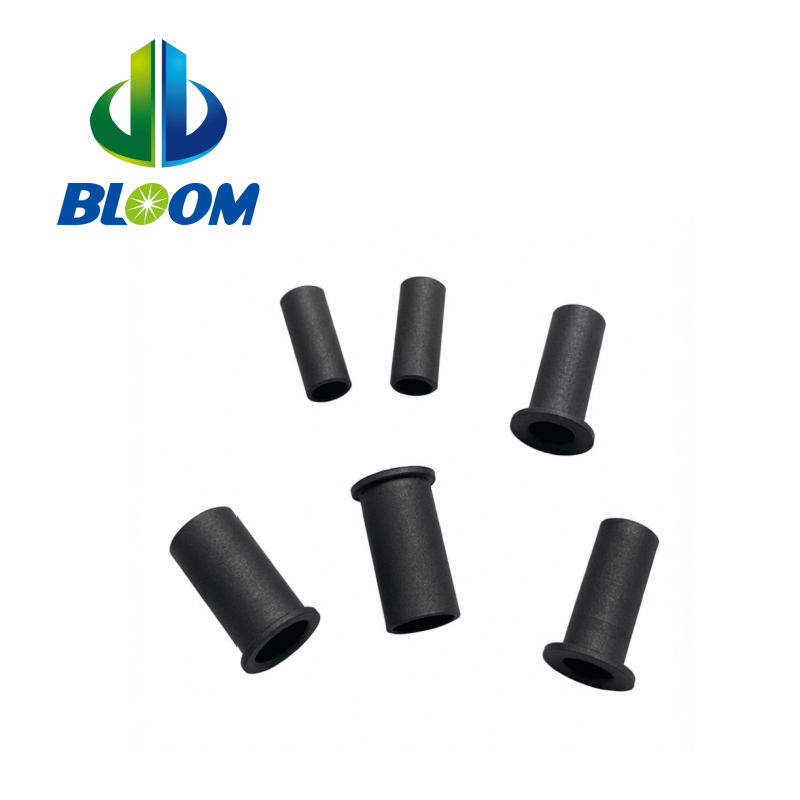

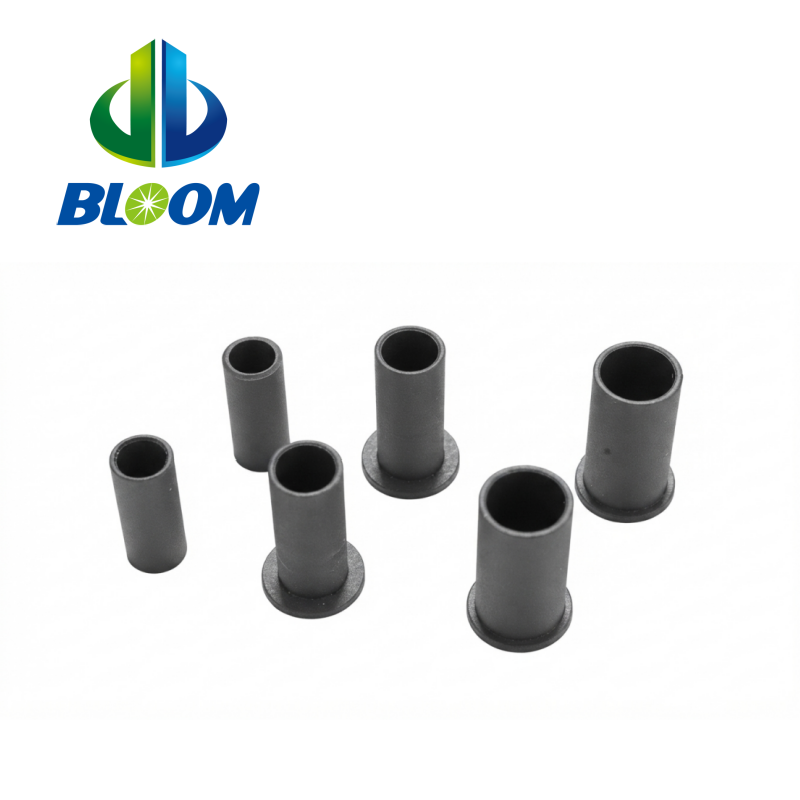

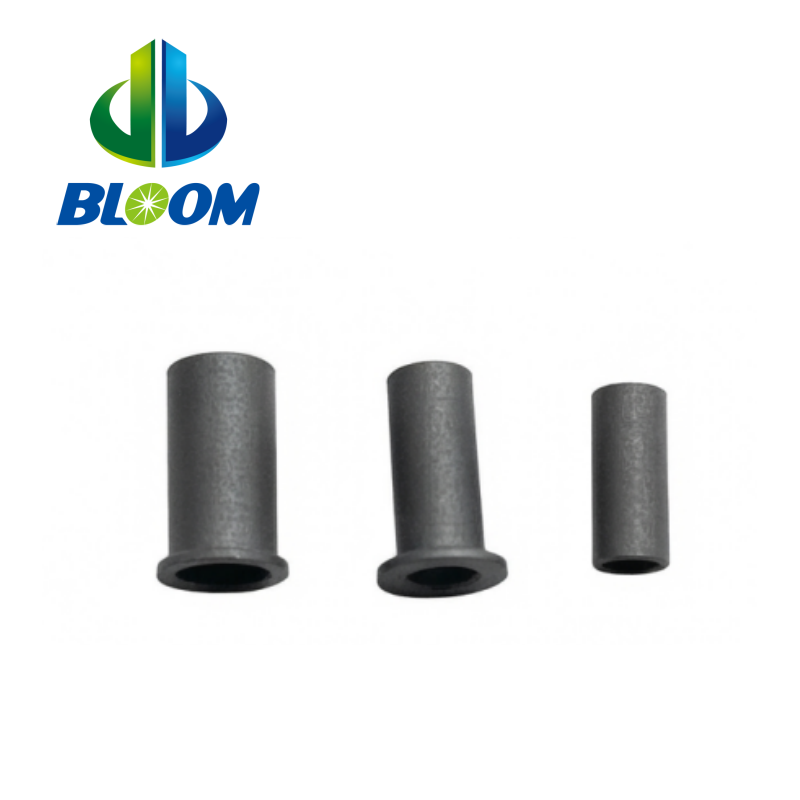

KCF Insulating Guide Sleeve for Welding Electrodes

The KCF insulating guide sleeve is a specially processed component used with resistance welding electrodes for nut welding, bolt welding, stud welding and projection welding.

Unlike a conventional coating applied to a separate metal substrate, KCF is a specially heat-treated alloy material that develops an insulating surface layer during processing. The insulating layer is integrated with the material surface, providing stable electrical insulation while maintaining the mechanical strength of the sleeve.

KCF guide sleeves are commonly used where an electrode or locating component needs to be electrically insulated from surrounding metal parts while remaining exposed to repeated mechanical contact and elevated temperatures.

Our KCF sleeves are available in standard sizes as well as customized configurations. Dimensions can be manufactured according to the customer’s electrode design, drawing, or application requirements.

Key Features

Feature	Description
Material	KCF special heat-treated alloy
Electrical insulation	Insulating surface layer for resistance welding applications
Temperature resistance	Suitable for high-temperature welding environments
Wear resistance	Designed for repeated contact and positioning applications
Mechanical strength	Metal-alloy construction provides better toughness than fragile ceramic alternatives in many applications
Applications	Nut welding, bolt welding, stud welding, projection welding
Sizes	Standard and customized sizes
Customization	Available according to drawing, dimensions or electrode configuration
Typical models	M4, M5, M6, M8, M10, M12 and other customized specifications

The standard product range includes commonly used KCF sizes such as M4, M5, M6, M8, M10 and M12, while special shapes and dimensions can be manufactured according to customer requirements.

4. Why Use KCF Instead of a Conventional Ceramic Sleeve?

Comparison	KCF Guide Sleeve	Conventional Ceramic Sleeve
Electrical insulation	Excellent	Excellent
Mechanical toughness	Good	Generally more brittle
Wear resistance	Good	Good
Thermal resistance	High	High
Resistance to mechanical shock	Better suited to repeated mechanical contact	More susceptible to cracking
Manufacturing flexibility	Standard & customized shapes available	Depends on ceramic processing
Resistance welding use	Nut / bolt / stud / projection welding	Used in selected applications

KCF guide pins and sleeves are increasingly used as an alternative to ceramic locating components in resistance welding because ceramics can be relatively brittle and susceptible to mechanical damage.
