KCF Guide Sleeve for Nut Welding | Insulating KCF Sleeve for Welding Electrodes
KCF Guide Sleeve is an electrically insulating guide component designed for resistance welding applications such as nut welding, bolt welding, stud welding, and projection welding. Made from specially treated KCF alloy, it combines mechanical strength, wear resistance, high-temperature performance, and reliable electrical insulation. Standard sizes are available, with custom KCF sleeves manufactured according to drawings or specifications.
Description

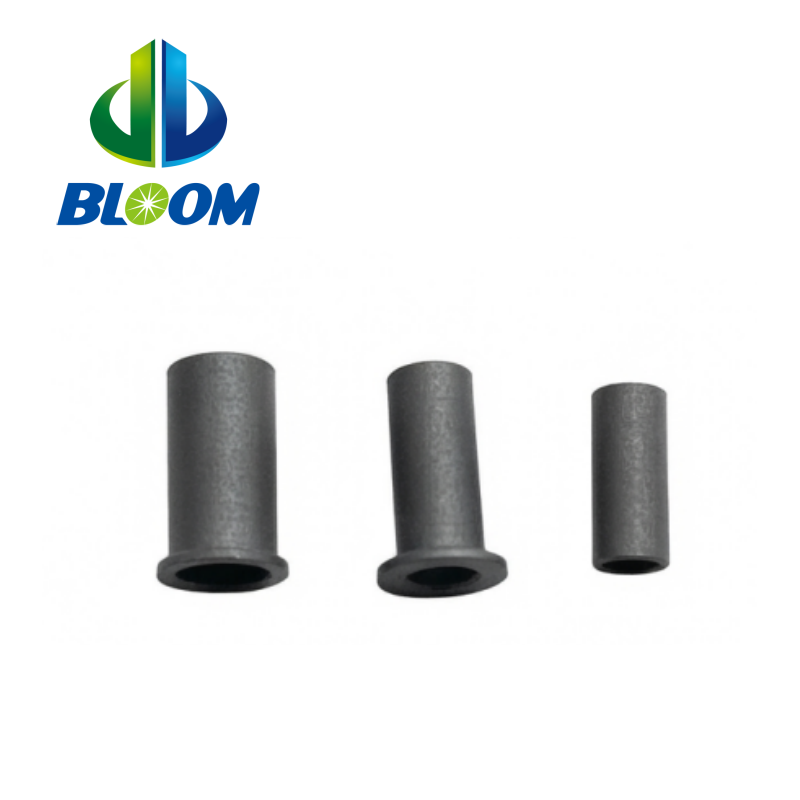

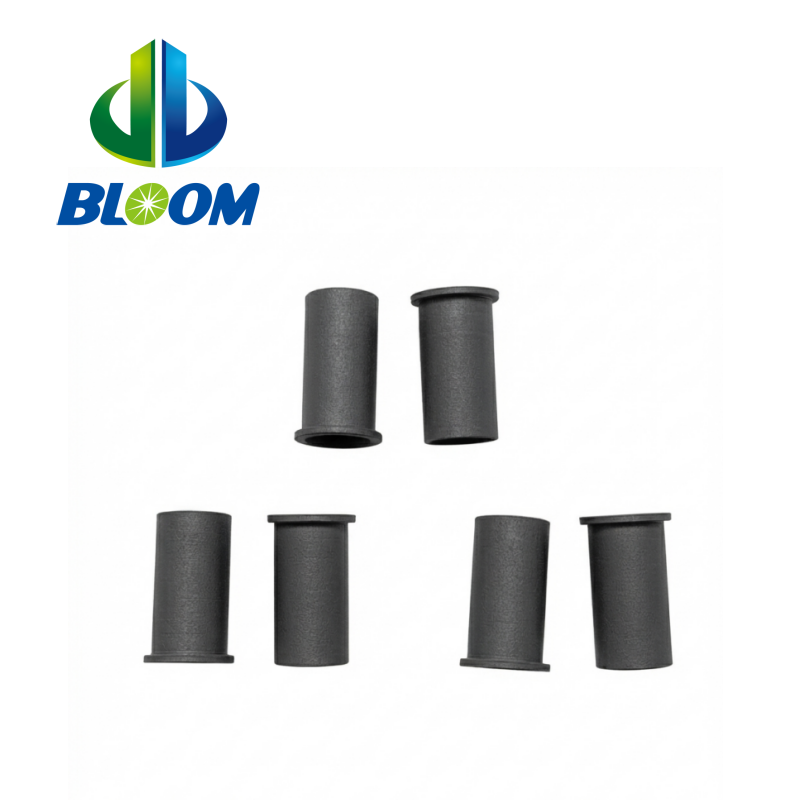

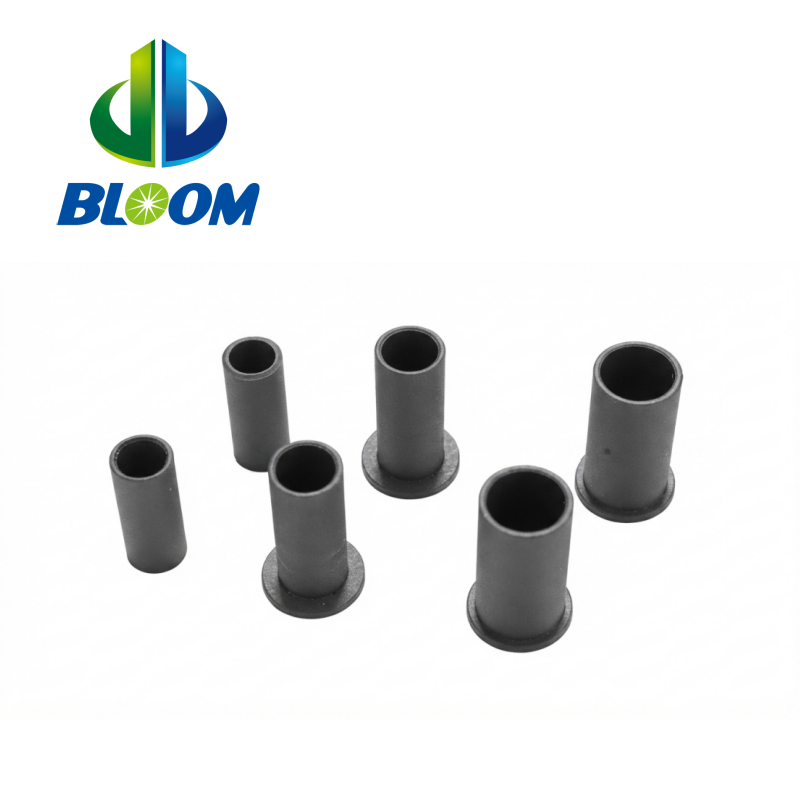

KCF Guide Sleeve for Resistance Welding
KCF guide sleeves are widely used as insulating locating components in resistance welding systems. They help guide and position nuts, bolts, or studs while reducing unwanted electrical conduction between the locating component and the welding circuit.
Unlike conventional metal sleeves, specially treated KCF alloy develops an electrically insulating surface layer while retaining the mechanical characteristics of a metal component. This makes KCF suitable for demanding welding environments where both insulation and mechanical durability are required.
Bloom supplies standard KCF guide sleeves in common sizes including M4, M5, M6, M8, M10 and M12, as well as customized sleeves according to customer drawings and application requirements.
| Feature | Description |
|---|---|
| KCF Material | Specially treated KCF alloy for resistance welding applications |
| Electrical Insulation | Insulating surface helps prevent unwanted current conduction |
| Wear Resistance | Suitable for repeated positioning and welding operations |
| High Temperature Resistance | Designed for high-temperature welding environments |
| High Mechanical Strength | Metal-based construction provides good mechanical durability |
| Custom Manufacturing | Available according to drawings, dimensions, or specifications |
| Multiple Sizes | Standard M4, M5, M6, M8, M10 and M12 options available |
KCF Sleeve Applications
KCF guide sleeves can be used in various resistance welding applications, including:
Nut welding
Bolt welding
Stud welding
Projection welding
Welding electrode guide systems
Nut and bolt locating systems
Automotive body welding fixtures
KCF guide components are particularly useful where the locating part needs to provide both mechanical positioning and electrical insulation.
Customized KCF Sleeve
Not every welding electrode or locating system uses a standard sleeve size. Bloom can manufacture customized KCF guide sleeves according to:
Customer drawing
Required inner diameter
Outer diameter
Overall length
Nut or bolt size
Electrode configuration
Welding fixture requirements
For a customized quotation, please send us your drawing, dimensions, or a clear photo of the existing sleeve. Our team can check the specification and recommend a suitable KCF sleeve.
