Description

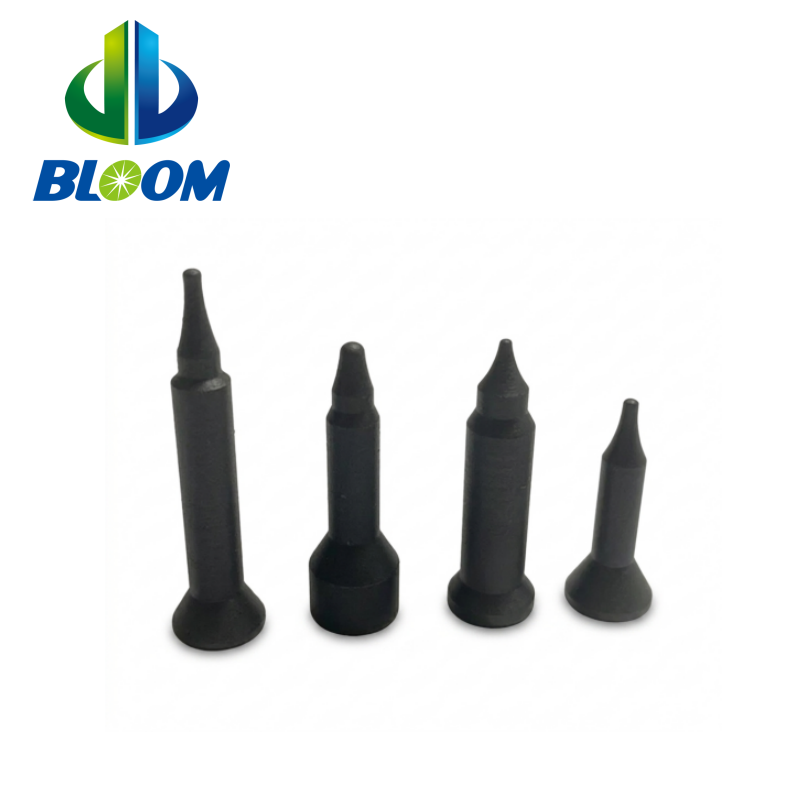

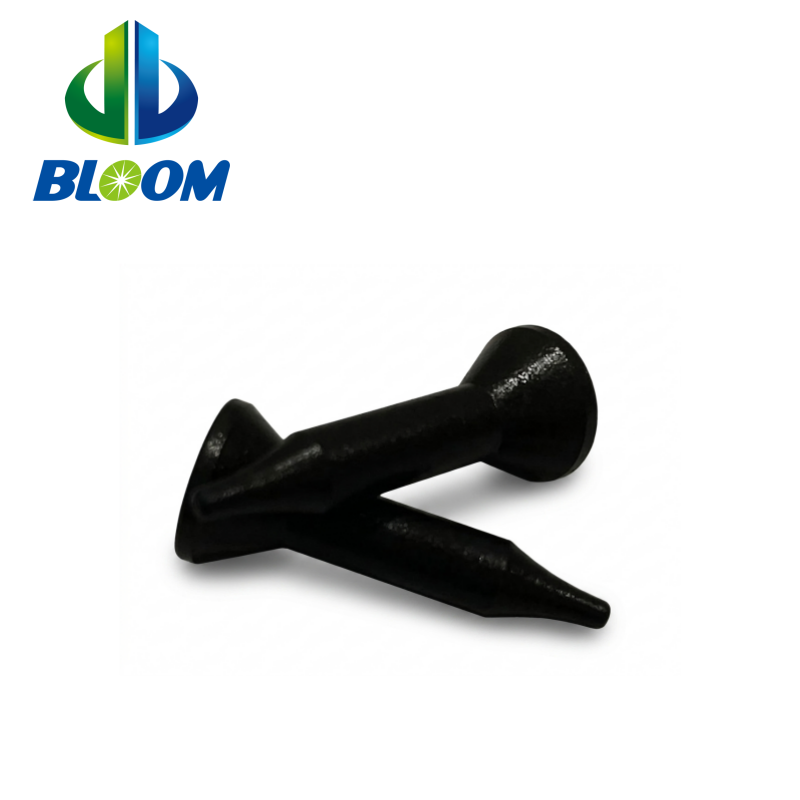

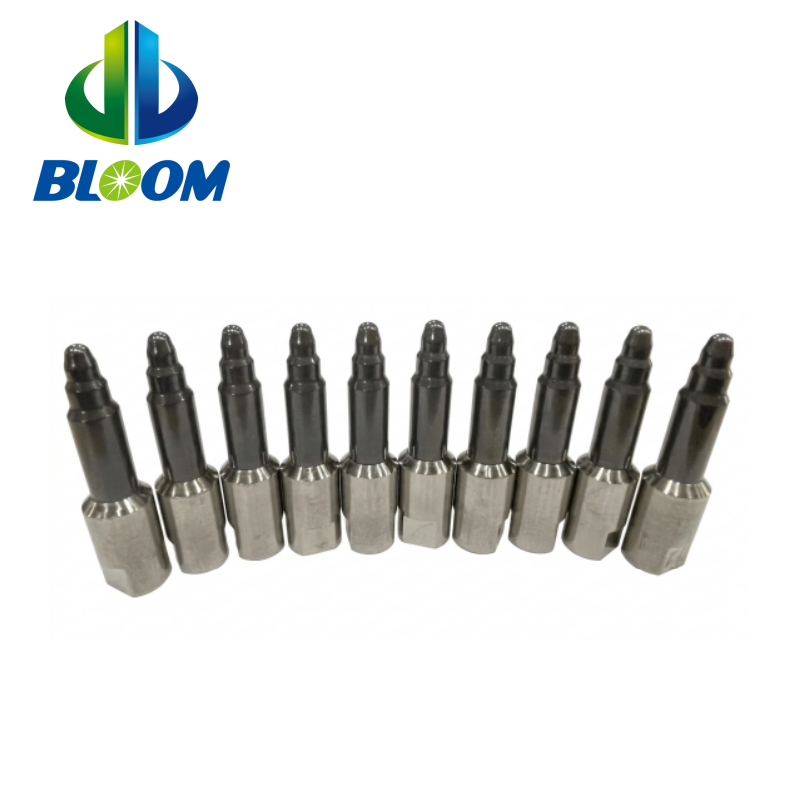

KCF Ceramic Locating Pin for Nut Projection Welding

KCF ceramic locating pins are specialized positioning components designed for nut projection welding, resistance welding, and automotive welding fixtures. They are widely used to accurately locate nuts, sheet-metal components, and other workpieces during automated welding processes.

KCF is a specialized ceramic material known for its combination of electrical insulation, heat resistance, wear resistance, and resistance to welding spatter adhesion. These properties make KCF locating pins suitable for demanding welding environments where conventional metal locating pins may experience electrical conduction, thermal deformation, wear, or spatter buildup.

Feature	Benefit
KCF Ceramic Material	Provides reliable performance in demanding welding environments
Excellent Electrical Insulation	Prevents unwanted current flow through the locating pin
High Heat Resistance	Suitable for repeated exposure to welding heat
Good Wear Resistance	Maintains positioning accuracy during repeated production cycles
Low Welding Spatter Adhesion	Helps keep the locating surface clean
Dimensional Stability	Supports consistent workpiece positioning
Custom Design	Available according to customer drawings or samples

Why Choose KCF Ceramic Locating Pins?
1. Excellent Electrical Insulation

KCF ceramic is an electrically insulating material, making it particularly suitable for locating components positioned close to the welding current path.

Unlike conventional metal locating pins, the ceramic pin does not readily conduct welding current, helping reduce unwanted current paths and electrical interference during resistance welding.

2. High Heat Resistance

During nut projection welding and resistance welding, locating pins can be exposed to repeated heat generated by the welding process.

KCF ceramic provides excellent resistance to elevated temperatures and thermal exposure, helping maintain stable positioning performance during repeated welding cycles.

3. Resistance to Welding Spatter

Welding spatter can accumulate on conventional metal locating pins and gradually interfere with workpiece positioning.

The ceramic surface of a KCF locating pin helps reduce welding spatter adhesion, making the pin easier to maintain and helping extend its usable service life.

4. Good Wear Resistance

Locating pins are repeatedly inserted into and removed from positioning holes during automated production. KCF ceramic provides good wear resistance, helping maintain the original geometry and positioning accuracy over repeated production cycles.

5. Suitable for Automated Welding

KCF locating pins are suitable for automated and robotic welding fixtures where stable positioning, electrical insulation, and resistance to welding heat are required.
