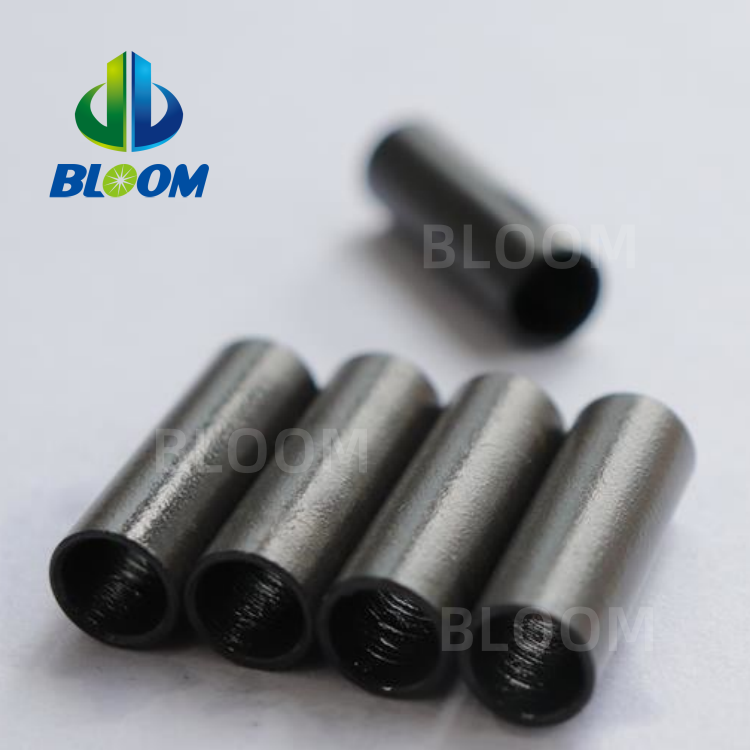

KCF Bolt Weld Guide Sleeve with Stud Welding Electrode Assembly | BLOOM Precision Welding
Upgrade your welding precision with BLOOM’s integrated KCF sleeve and electrode solutions. Our KCF sleeves provide a permanent, non-peeling insulation layer (8-15μm) designed to fit perfectly with high-conductivity stud welding electrodes. This combination prevents current leakage, ensures accurate bolt positioning.
Description
High-Performance Insulation for Demanding Welding Environments
At BLOOM (Material Alloy), we understand that consistency is key in projection and spot welding. Our KCF guide sleeves are manufactured from a specialized ferritic alloy that undergoes a proprietary 1220°C heat treatment. This results in a sleeve that combines the mechanical toughness of metal with the high electrical resistance required to protect your electrodes and workpieces.
Why Choose BLOOM KCF Sleeves & Electrodes?
Total Insulation Control: The 8-15μm oxide layer is chemically bonded to the alloy, ensuring it stays intact even under high thermal shock and physical friction.
Optimal Conductivity: Our matched electrodes are made from premium alloys (like Chrome Zirconium Copper) to ensure efficient energy transfer while the sleeve maintains total insulation.
Perfect Fitment: Precision-machined to ensure zero wobble, resulting in perfectly centered bolt welds every time.
Extended Tool Life: Reduces the frequency of electrode replacement by preventing unintended arcing and material buildup.
| Component / Property | Specification Details |
|---|---|
| Sleeve Material | Genuine KCF Alloy (Insulating) |
| Electrode Material | CuCrZr / Beryllium Copper (Optional) |
| Insulation Depth | 8μm – 15μm Integrated Layer |
| Insulation Resistance | ≥100MΩ |
| Max Working Temp | 1000°C+ |
| Sleeve Hardness | HV 200 – 300 |
| Standard Sizes | M4, M5, M6, M8, M10, M12 (Customizable) |
