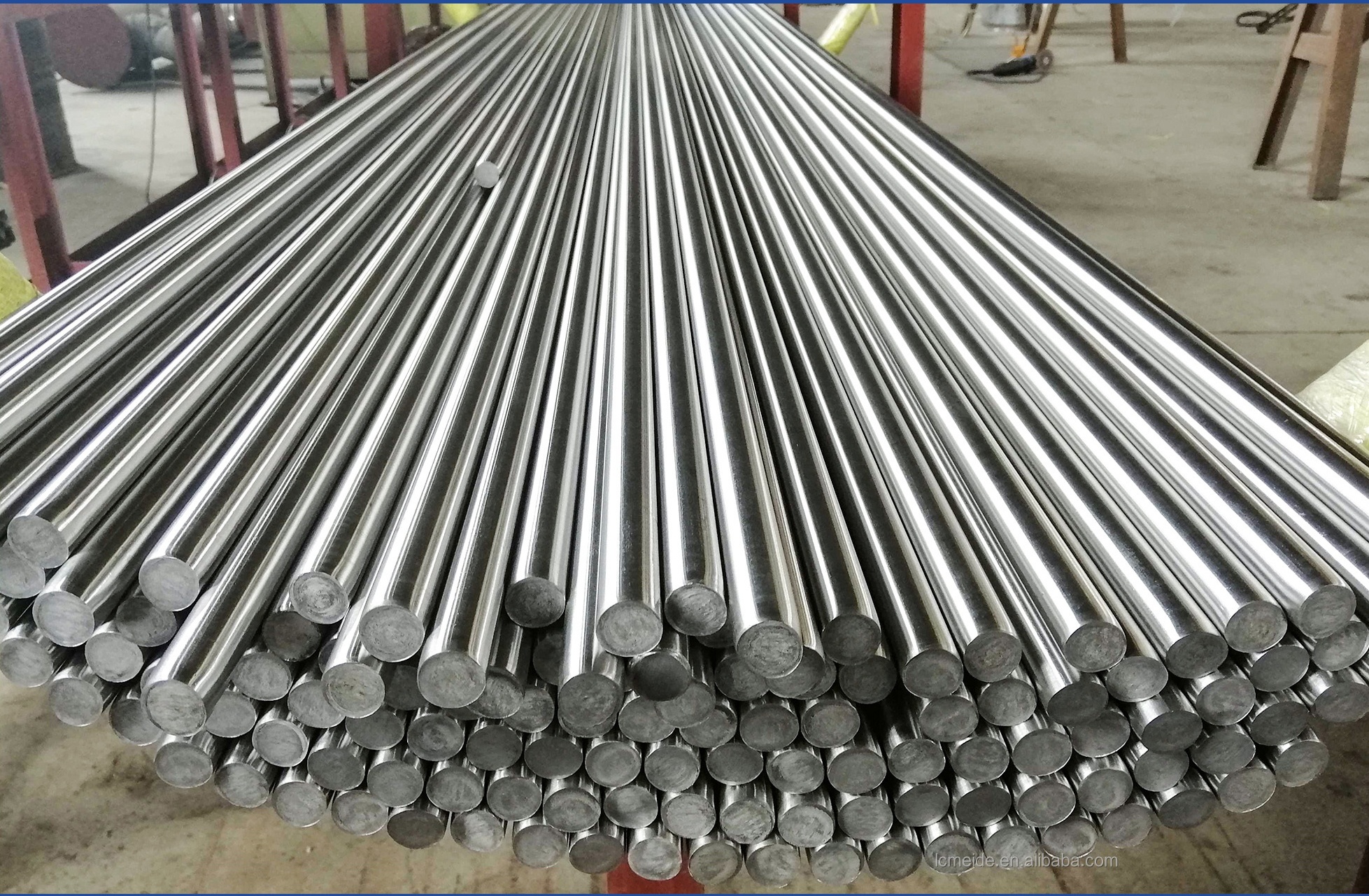

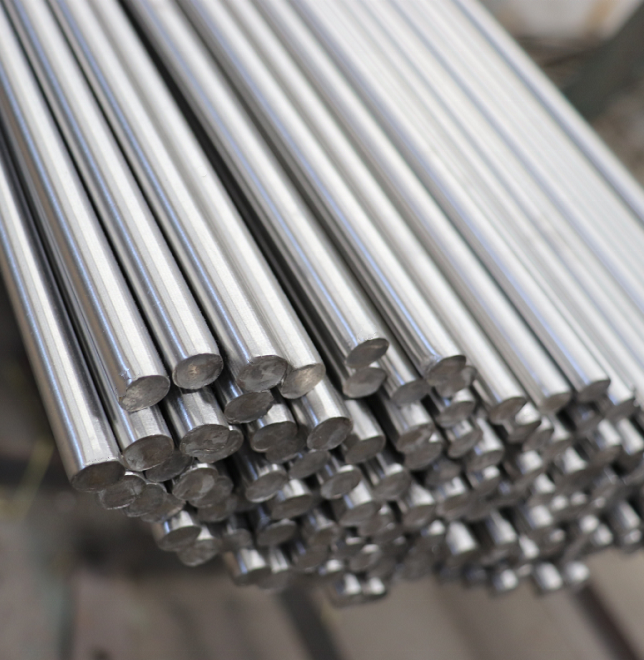

Insulated KCF Rods for Nut Welding Guide Pins KCF Alloy Bars
High-Durability KCF Insulation Rods
Non-Peeling Insulation: Superior surface oxide layer for 100% electrical isolation.
High Toughness: Metallic core prevents breakage under heavy mechanical impact.
Cost-Effective: Ideal for high-speed automated welding lines.
Customizable: Easy to machine into pins, sleeves, and specialized components.
Description
High-Performance KCF Rods for Resistance Welding
What is KCF Material?
KCF is a special Ferro-Chrome-Aluminum (Cr-Al-Fe) alloy. Through a precision thermal treatment process at temperatures ranging from 1000°C to 1500°C, a high-quality insulation layer (8-10μm thick) is grown directly on the surface of the metal substrate.
Key Feature: The insulation layer is not a coating; it is an integrated oxide layer that never peels off, ensuring long-lasting performance in harsh welding environments.
Applications
KCF rods are primarily used to manufacture high-durability insulation components for the automotive and sheet metal industries:
Nut Projection Welding: Used as guide pins to prevent current from flowing through the nut, protecting the threads and reducing sparks.
Bolt Welding: Ensures precise alignment and electrical insulation for bolt positioning.
Automated Production Lines: Ideal for high-speed robotic welding cells requiring minimal downtime.
Core Features: Why Choose KCF?
| Feature | Description |
|---|---|
| Integrated Insulation | Surface insulation layer is grown from the base metal, offering superior bonding. |
| High Toughness | Unlike ceramics, KCF is metallic and highly resistant to mechanical impact and vibration. |
| Anti-Slag Surface | Special surface properties minimize weld spatter adhesion, reducing cleaning frequency. |
| Precision Machining | Can be easily machined into complex shapes (sleeves, stepped pins) before final heat treatment. |
KCF Rods vs. Silicon Nitride (Si3N4) Ceramics
| Property | KCF Alloy Rod | Silicon Nitride (Si3N4) |
|---|---|---|
| Material Base | Special Insulated Alloy | Advanced Ceramic |
| Impact Resistance | Excellent (Durable under heavy pressure) | Fair (Brittle, prone to chipping) |
| Insulation Type | Surface Insulation (8-10μm) | Full Body Insulation |
| Customization | Easy & Fast (Cost-effective for custom shapes) | Difficult (Requires diamond grinding) |
| Thermal Resistance | Up to 1000°C | Up to 1200°C |
| Best Choice For | High ROI, standard automated welding tasks. | Extreme high-temperature or zero-leakage tasks. |
Technical Specifications
Standard Lengths: 1 meter
Diameters: Available from 10mm to 40mm

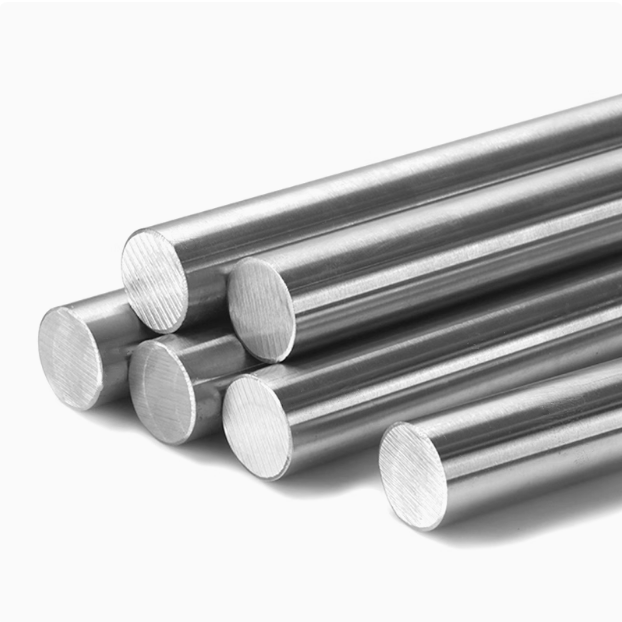

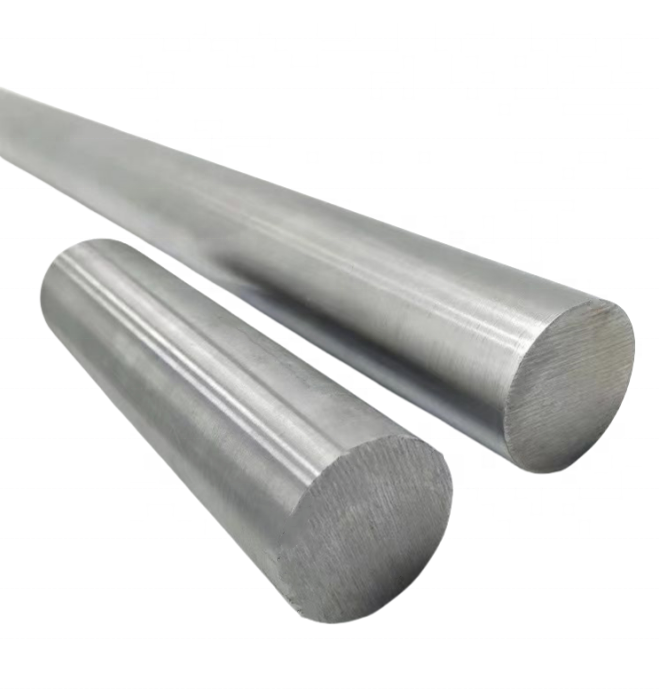

Shape: Round bars
