Product description

This nut spot welder is equipped with a conveying system compatible with M5-M12 standard and non-standard nuts. Utilizing electromagnetic adsorption/slide-rod conveying combined with vibration-based anti-reverse screening, it achieves PLC-controlled pneumatic transfer (5-45 nuts/minute, ≥98% accuracy). The device supports both standalone and linked operation modes, and features centralized multi-machine control. When synchronized with the welder, it enables a fully automated “start-feed-weld” process. Characterized by precision, high efficiency, reverse-proof screening, low energy consumption, and stable performance, it is compatible with mature techniques from both Western and Asian markets. Operating on 220V/50Hz power (80W) and a 0.5MPa air source, it significantly enhances nut welding efficiency in the automotive and hardware industries.

Technical specification

Name	Automatic Nut Feeder/Vibratory Bowl Feeder
Material	Aluminum(AL7075), Stainless Steel(SUS304)
Condition	Brand new
Power
AC220V
Frequency
50 / 60Hz
Air pressure
0.4 ~ 0.7Mpa
Feeding capacity
30 ~ 50 pieces/min
Feeding source distance
200mm
Applicable nut size
M5–M12 (each nuts feeder can transfer one kind nut)

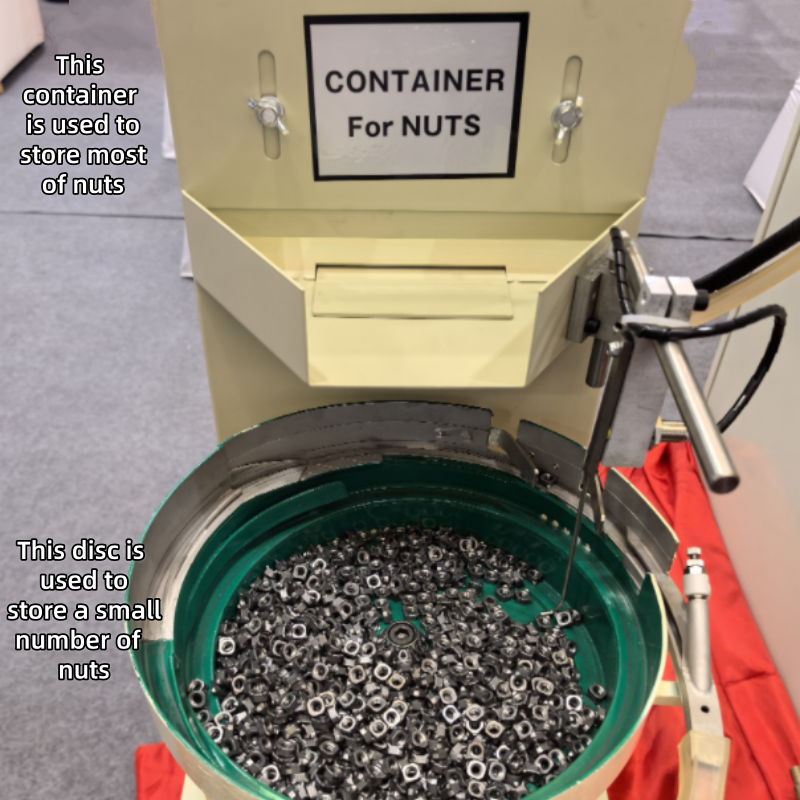

Nut capacity
Approximately 2000 pieces , including storage silo
Total weight:
80kg
Original
China
Package
Wooden case
Package size
150X150X120 cm

Applications

Vibrating Bowl Feeders are the most common devices used to feed individual parts in Industrial Assembly Automation Applications.They are utilized in many industries including automotive, electronic, food, Fast Moving Consumable Goods (FMCG), packaging and metal working industries. It also serves other industries such as glass, foundry, steel, construction, recycling, pulp and paper, and plastics.

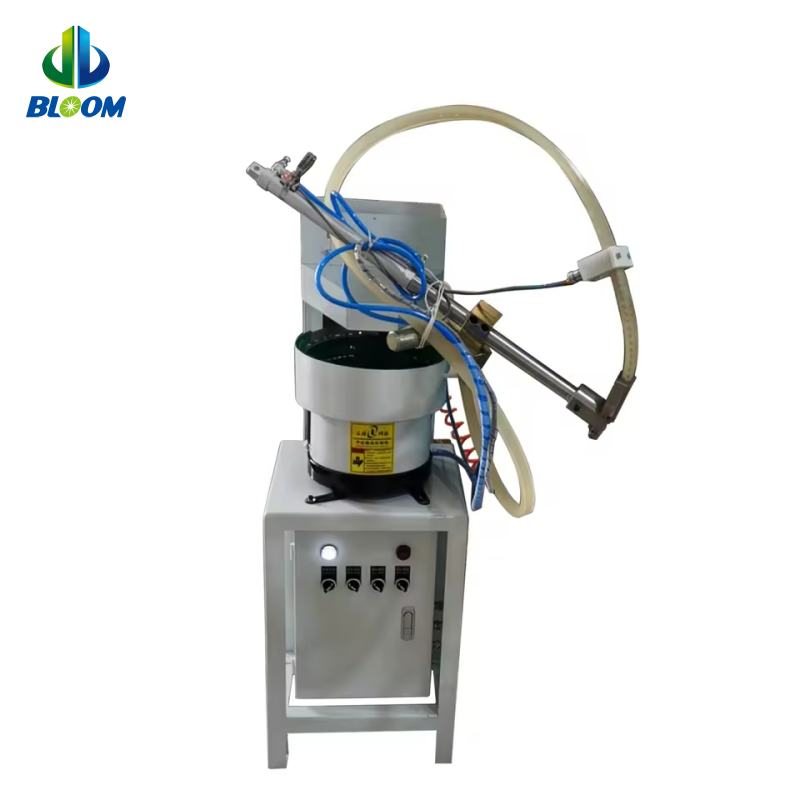

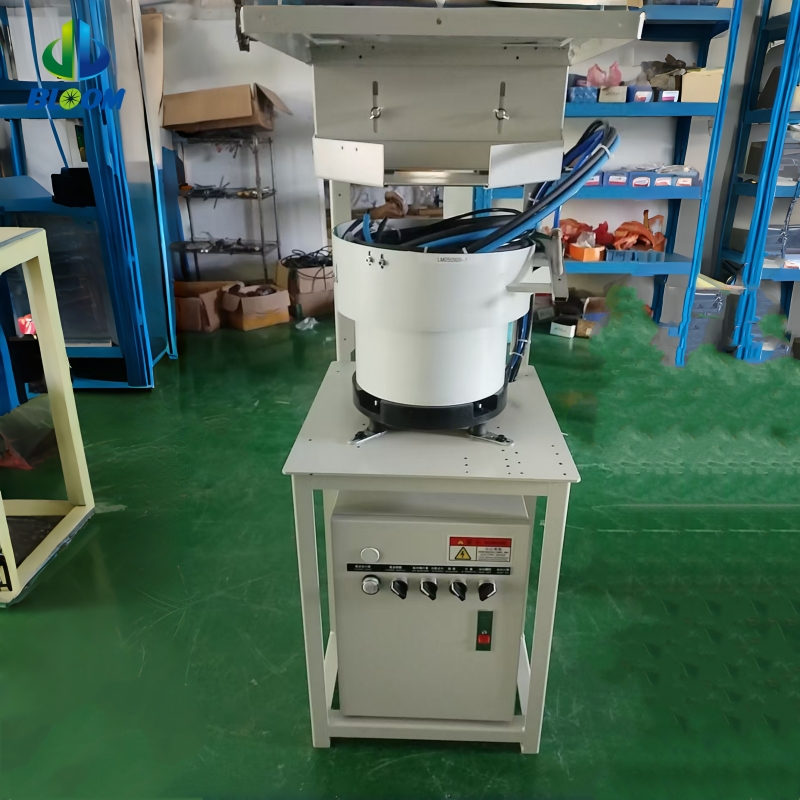

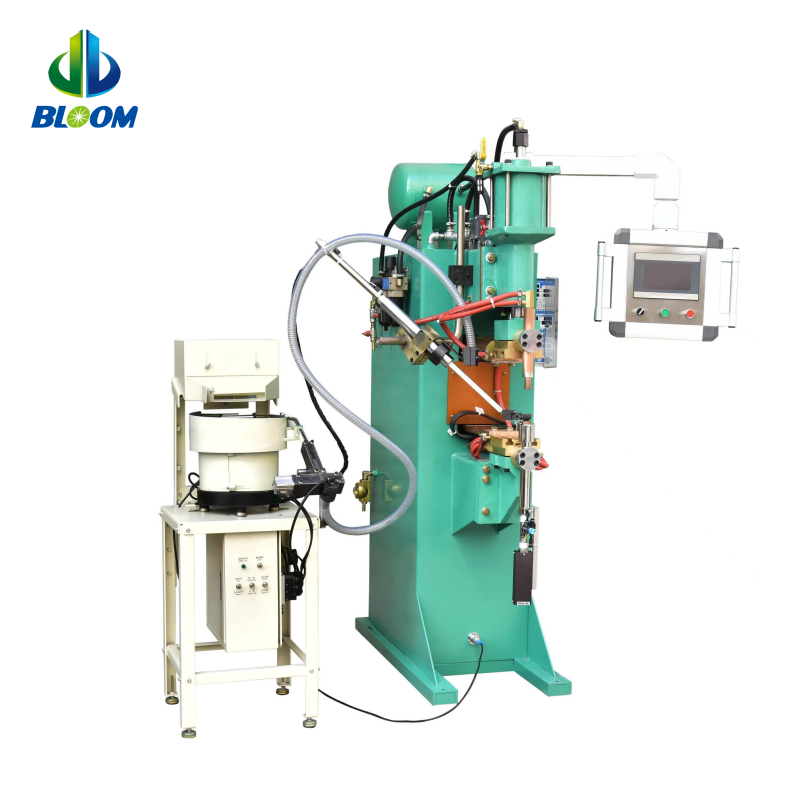

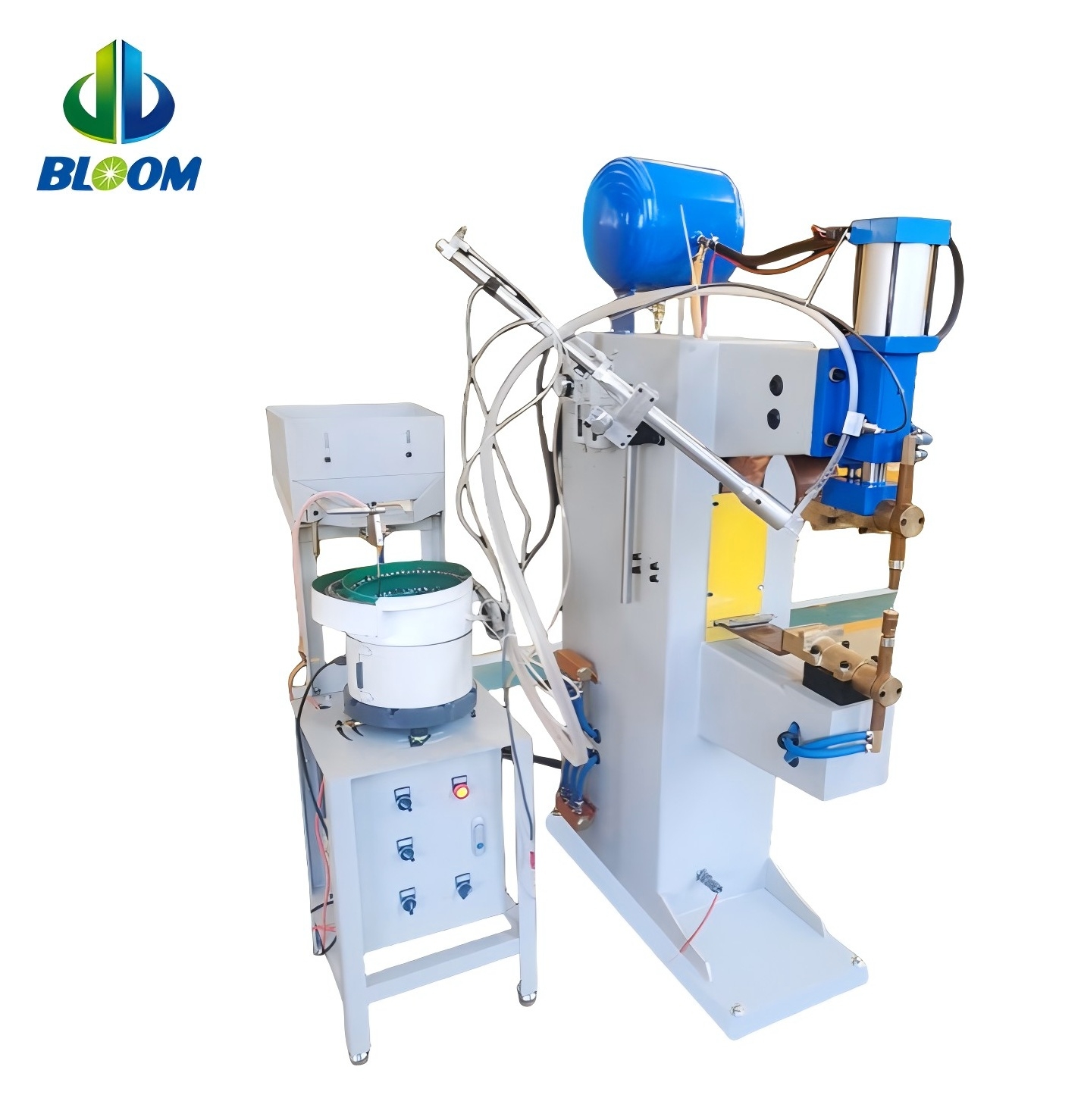

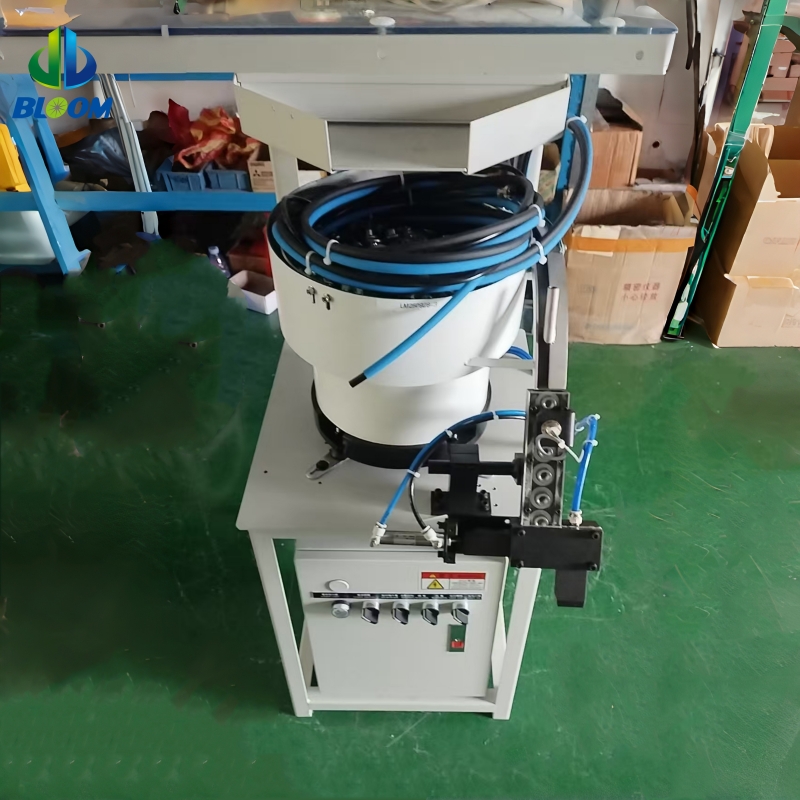

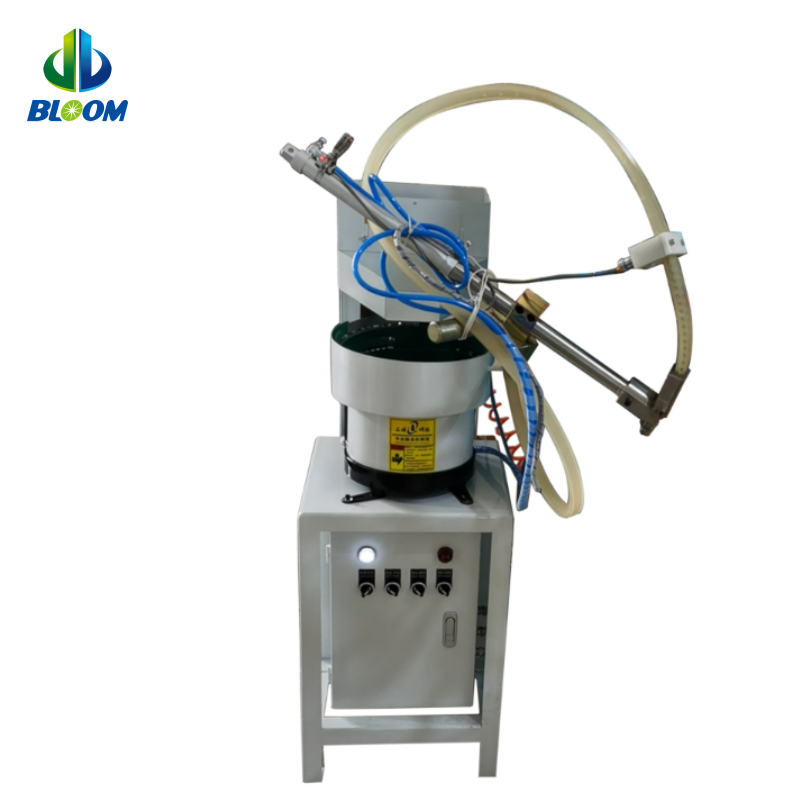

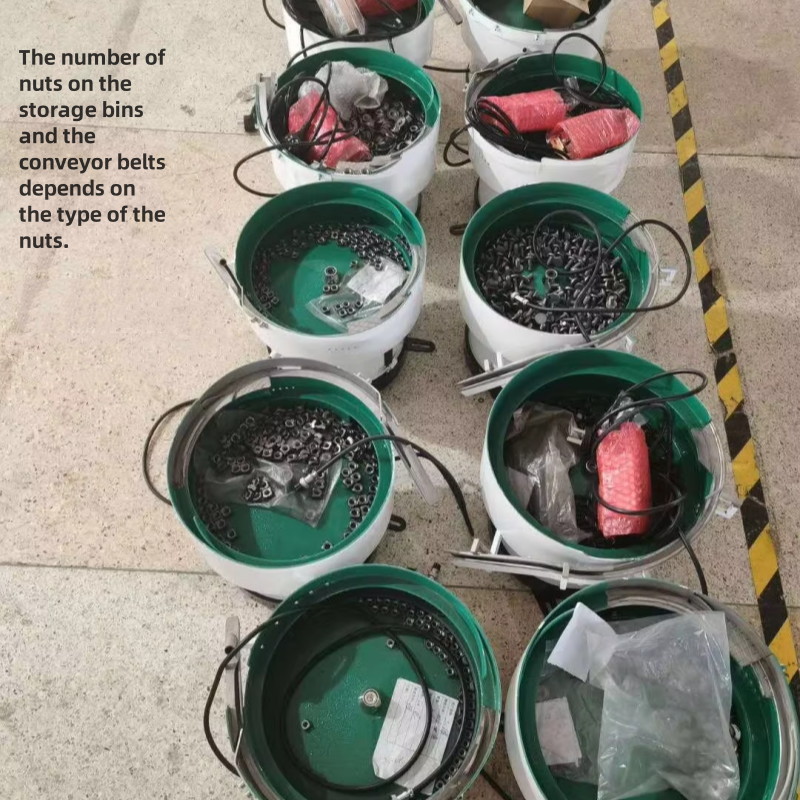

Product show
