Product Description

Tired of unstable nut feeding that slows down spot welding and automated assembly lines? This customized vibratory nut feeder is designed to deliver nuts steadily for production-line integration.

It features PLC control for coordinated operation and supports a feeding capacity of 30–50 pieces/min under AC220V power supply and 0.4–0.7 MPa air pressure. Standard configuration includes a machine frame, vibratory bowl, PLC control cabinet, pneumatic components, nut conveying tube, nut feeding gun, and mounting bracket.

Product Parameters

arameter	Value
Product Name	Customized Vibratory Automatic Nut Feeder
Control Mode	PLC Control
Power Supply	AC220V
Frequency	50/60 Hz
Air Pressure	0.4–0.7 MPa
Feeding Capacity	30–50 pieces/min
Feeding Source Distance	200 mm
Applicable Nut Size	M5–M12
Nut Capacity	Approximately 2,000 pieces
Total Weight	80 kg
Machine Color	White
Blue Color MOQ	50 sets
Standard Configuration	Machine frame vibratory bowl PLC control cabinet pneumatic components nut conveying tube nut feeding gun mounting bracket
Optional Items	Automatic loading device dust cover
Customization	Supported according to nut type workpiece feeding speed and production-line integration requirements
Company Name	Bloom(Suzhou)Materials Co. Ltd

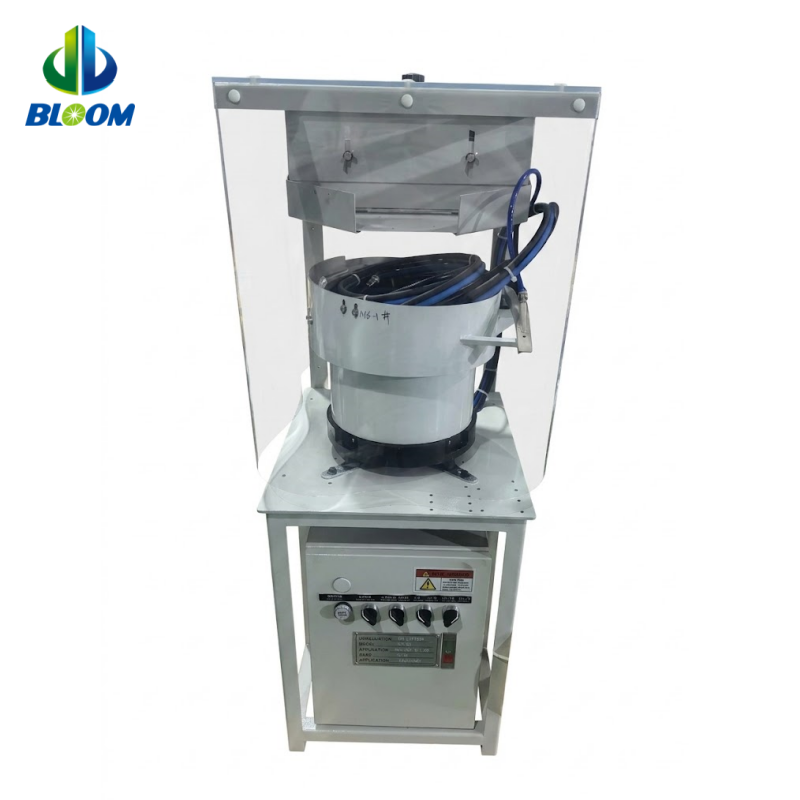

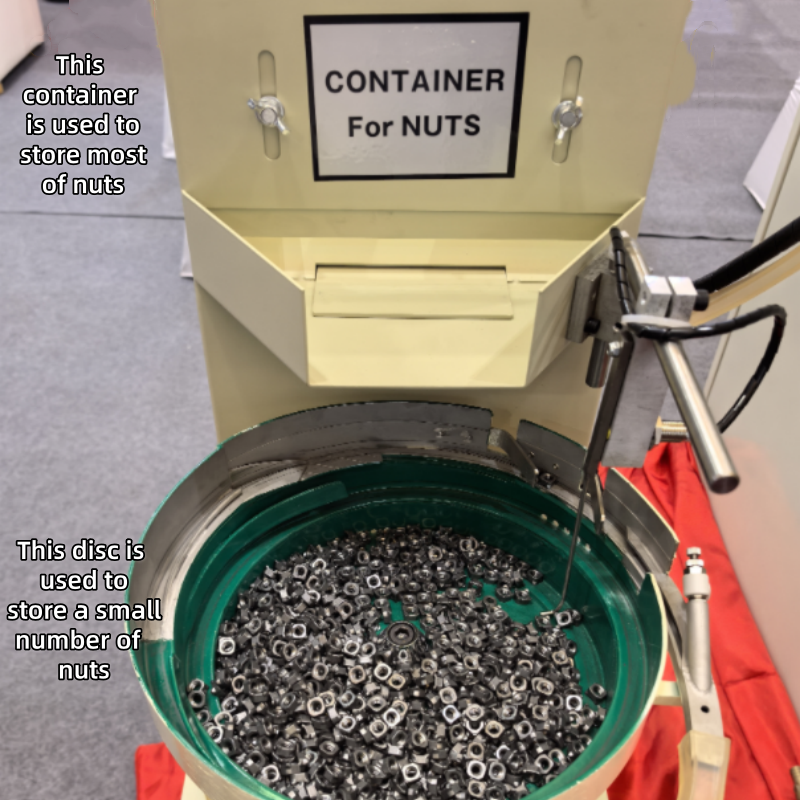

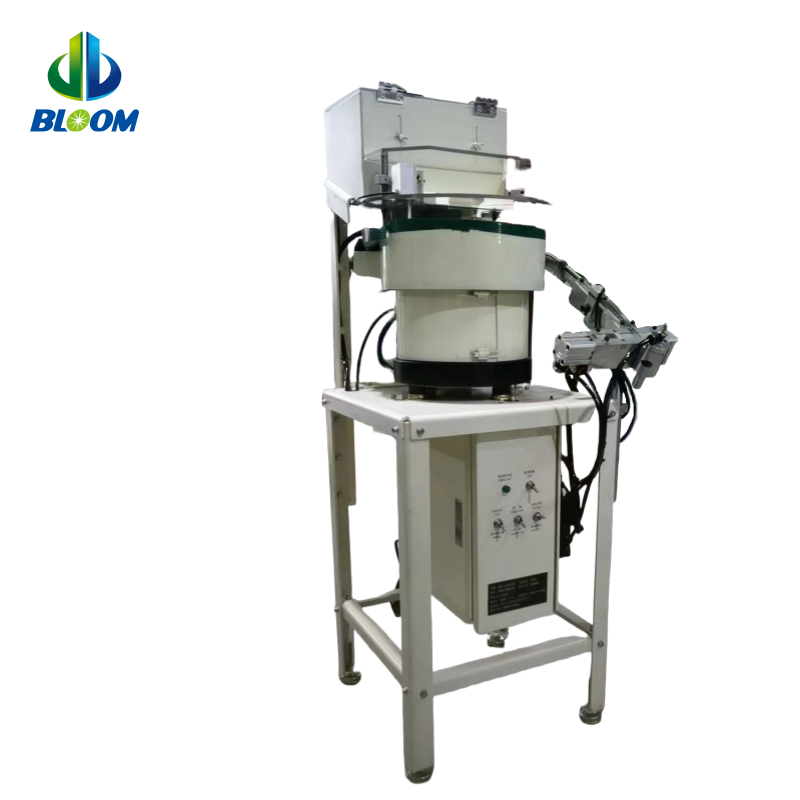

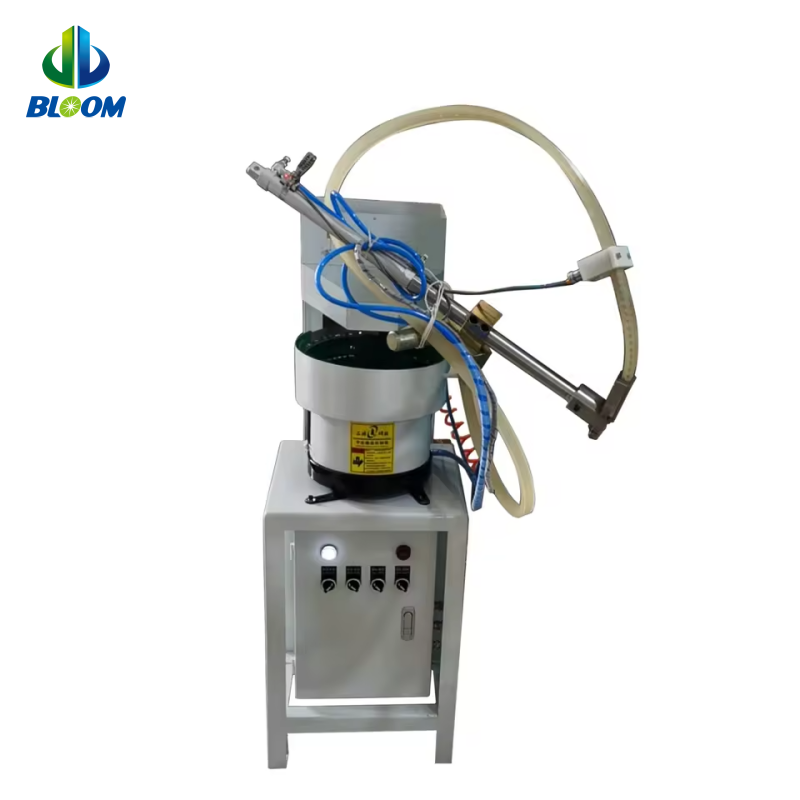

Photos

About company

Bloom(Suzhou)Materials Co. Ltd focuses on nut feeding machines and welding auxiliary tools for industrial applications. We support custom design and integration based on your drawing or process needs, with ISO9001 quality management system certification and in-house manufacturing capability.
