The Ultimate Non-Conductive Solution for Precision Resistance Welding
In high-volume automated nut and bolt welding operations, standard metal positioning pins often suffer from severe electrical current leakage, rapid thermal wear, and costly production downtime. When extreme industrial environments demand absolute electrical non-conductivity and maximum wear resistance, traditional metallic options fall short.

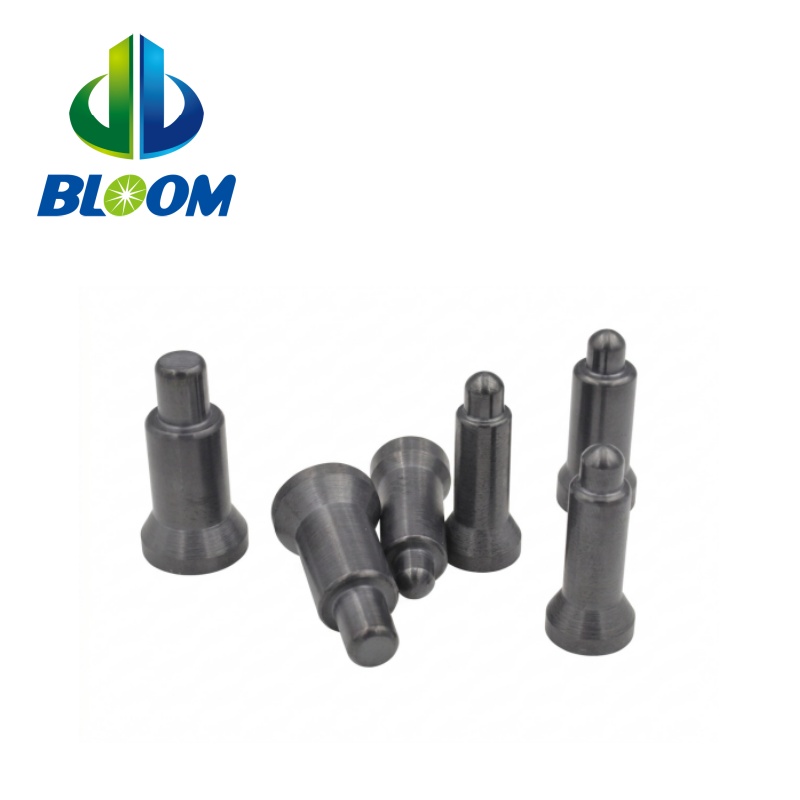

Our Si3N4 Silicon Nitride Ceramic Welding Guide Pins are engineered specifically to eliminate these heavy industrial bottlenecks. Manufactured from high-grade technical ceramics, these pins combine extreme compressive strength, superior thermal shock stability, and complete electrical isolation to ensure flawless welding performance.

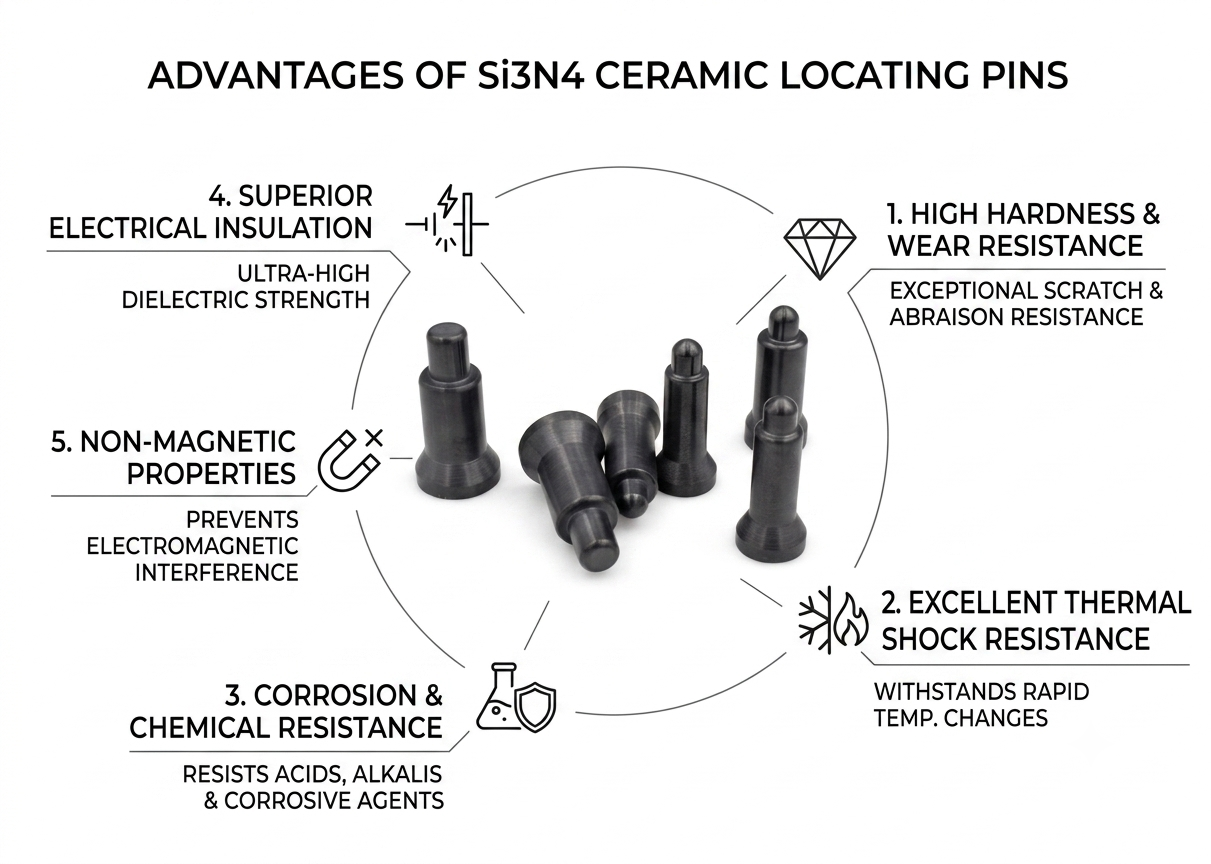

Key Advantages & Customer Pain Points Solved:
Complete Electrical Isolation: Unlike metallic pins that can trigger unwanted current shunting and energy leakage, Si3N4 ceramic material is 100% non-conductive, directing welding current precisely onto the fastener joint.

Extreme Hardness & Durability: Boasting an impressive hardness rating, these pins resist high-frequency mechanical friction and physical deformation far longer than conventional steel or alloy alternatives.

Superior Thermal Stability: Engineered to handle aggressive thermal cycling in continuous high-heat production lines without cracking, scaling, or losing precise dimensional tolerances.

Drastically Reduced Downtime: Exceptional resistance to weld spatter adhesion and mechanical wear translates to fewer tool replacements and maximum operational uptime for your factory floor.

Performance Metrics	Traditional Steel / KCF Pins	Our Si3N4 Silicon Nitride Ceramic Pins
Electrical Conductivity	Partially or fully conductive (Can cause stray current shunting)	100% Non-conductive (Complete electrical insulation)
Material Hardness	Moderate hardness, prone to gradual grooving and wear	Extreme hardness of 18 Gpa for unmatched wear life
Thermal Shock & Heat Tolerance	Can soften, scale, or deform under continuous high heat	Exceptional thermal shock resistance and high-temperature strength
Spatter Adhesion	Prone to catching and sticking molten weld spatter	Low-adhesion ceramic surface, easy to clean and maintain

Physical Property Parameter	Typical Industrial Specification
Material Composition	Silicon Nitride (Si3N4) Advanced Technical Ceramic
Material Hardness	~18 Gpa
Thermal Conductivity	~15 W/m.k
Compressive Strength	~488 Mpa
Electrical Property	Non-conductive / Insulative
Primary Applications	Resistance welding, projection nut welding, and automotive automated assembly lines
