Description

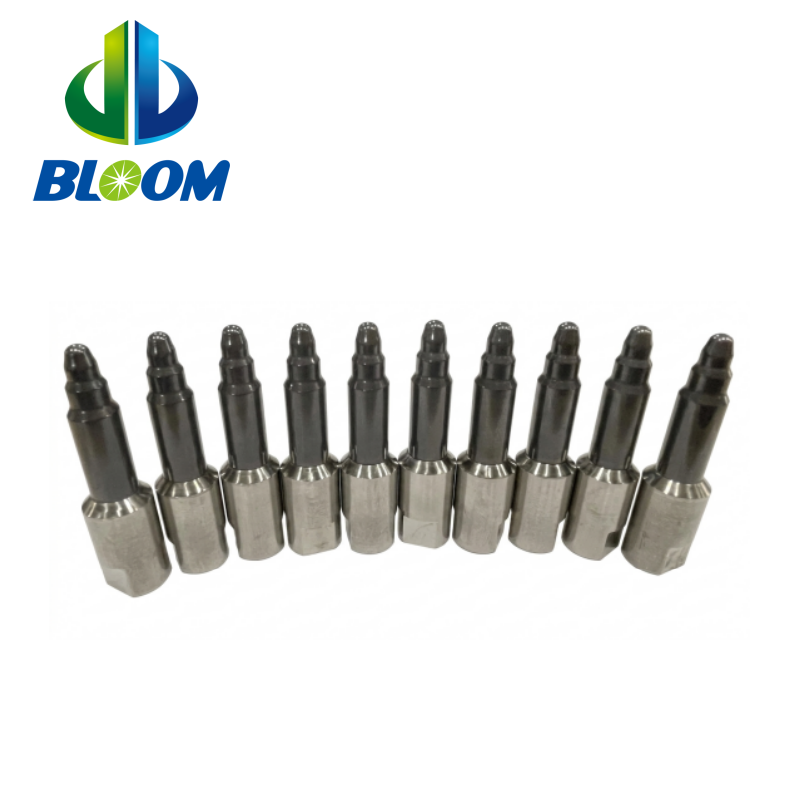

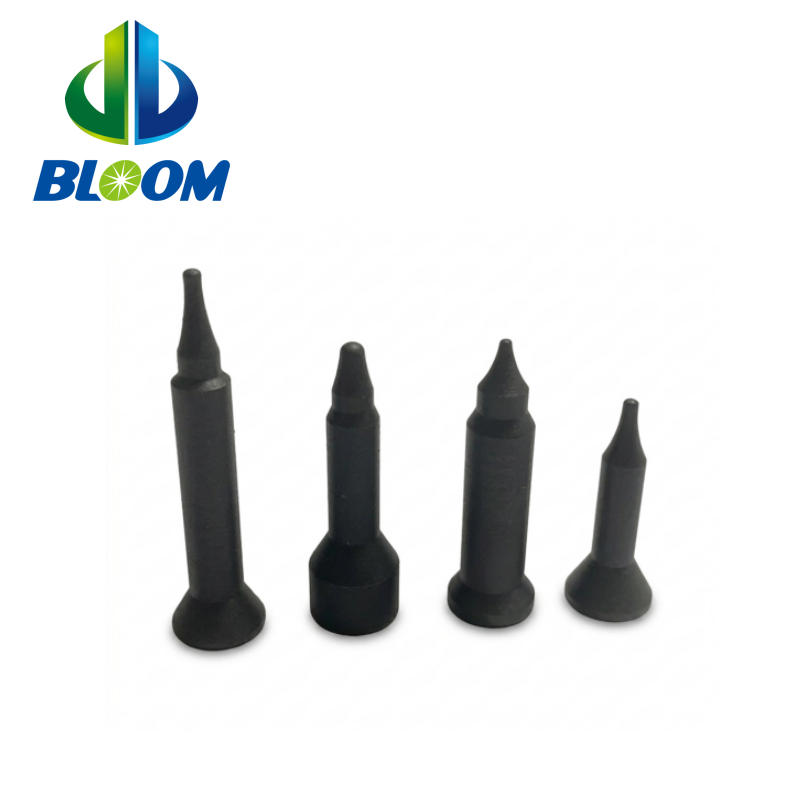

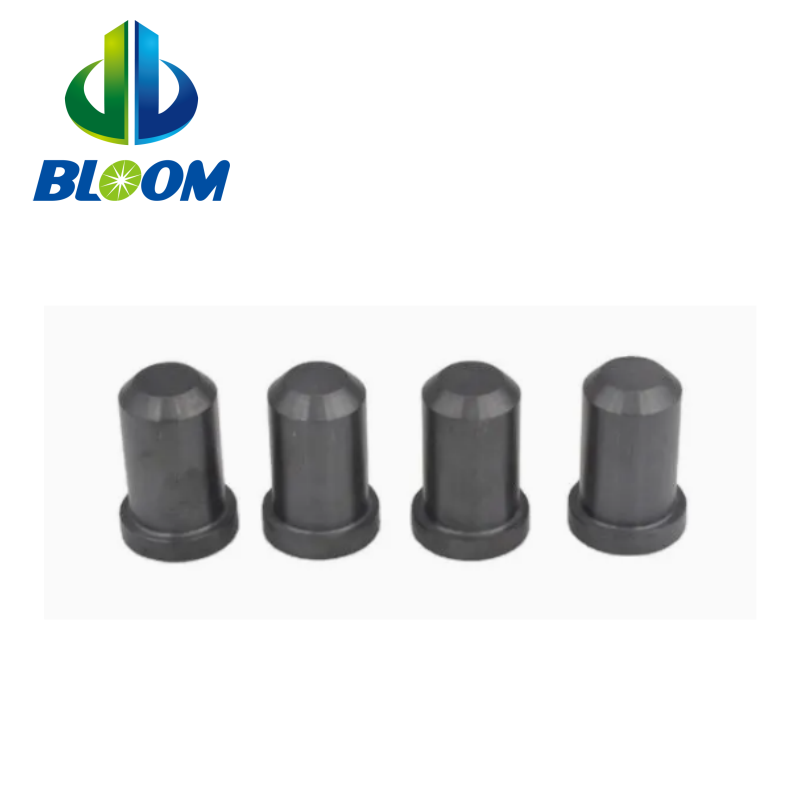

Si₃N₄ silicon nitride ceramic locating pins are precision positioning components designed for nut projection welding, resistance welding, and automotive welding fixtures. They are used to accurately locate and guide weld nuts, studs, and sheet-metal components during repeated welding cycles.

Compared with conventional metal locating pins, silicon nitride ceramic provides excellent electrical insulation, high hardness, wear resistance, thermal shock resistance, and dimensional stability at elevated temperatures. These properties make Si₃N₄ ceramic welding pins particularly suitable for automated and high-volume welding applications.

Feature	Benefit
Si₃N₄ Silicon Nitride Ceramic	High hardness, strength, and wear resistance
Electrical Insulation	Helps prevent unwanted current flow and electrical arcing
High Thermal Shock Resistance	Suitable for repeated heating and cooling during welding
Low Thermal Expansion	Helps maintain stable positioning accuracy
Smooth Ceramic Surface	Reduces welding spatter adhesion
High Wear Resistance	Suitable for repeated positioning and high-cycle production
Custom Geometry	Manufactured according to drawings or samples

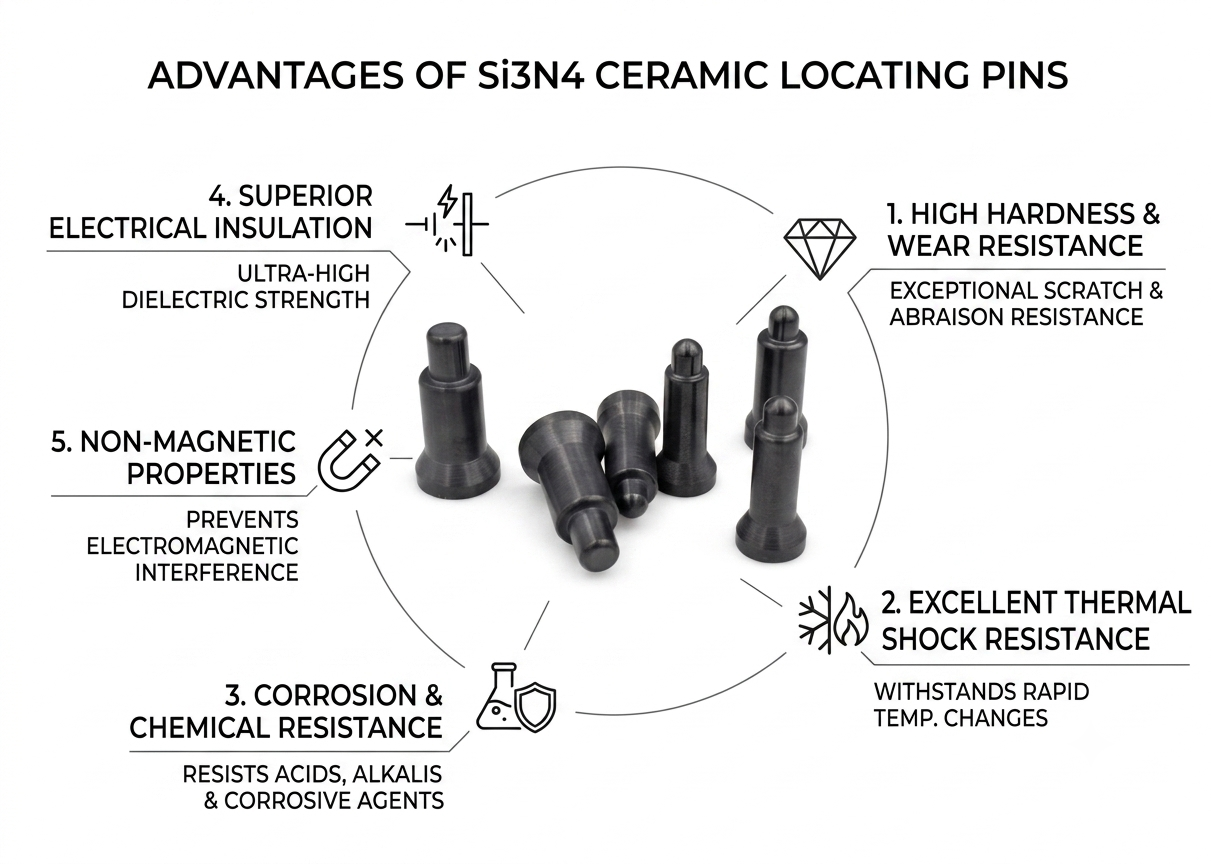

Why Choose Si₃N₄ Ceramic Locating Pins?

1. Excellent Electrical Insulation

Silicon nitride is electrically insulating, helping prevent the locating pin from becoming an unintended current path during resistance or projection welding. This can also reduce the risk of electrical arcing between the pin and workpiece.

2. High Wear Resistance

The high hardness of Si₃N₄ helps the locating pin maintain its geometry during repeated nut positioning and welding cycles, making it suitable for high-volume automated production.

3. Excellent Thermal Shock Resistance

Projection welding exposes locating components to repeated thermal cycles. Silicon nitride has low thermal expansion and good thermal-shock resistance, allowing it to maintain dimensional stability under rapid temperature changes.

4. Reduced Welding Spatter Adhesion

The smooth ceramic surface can reduce the adhesion of welding spatter compared with conventional metal locating pins. This helps reduce cleaning and maintenance requirements around the welding fixture.

5. Stable Positioning Accuracy

The combination of high hardness, wear resistance, and low thermal expansion helps maintain the locating geometry over repeated production cycles, supporting consistent nut positioning and welding quality.

Applications

Si₃N₄ ceramic locating pins are suitable for:

Nut projection welding
Resistance welding
Weld nut positioning
Sheet-metal positioning
Automotive body-in-white (BIW) welding
Automotive chassis and bracket welding
Robotic welding fixtures
Automated welding lines
EV manufacturing
Welding fixture and tooling systems

They are especially useful where conventional steel or other metal locating pins suffer from wear, welding spatter buildup, electrical conduction, or thermal deformation.
