Description

Why Choose Our KCF Alloy Bars?
KCF is a special chromium-iron alloy (Ferritic Stainless Steel) treated with a proprietary oxidation process. The magic happens on the surface: a 15-30μm thick, high-quality insulating layer is deeply integrated into the metal base. It is NOT a coating that peels off; it is a structural transformation that guarantees excellent insulation and long service life during heavy-duty spot welding.

Key Benefits for Your Production:
Zero Coating Peel-Off: The insulation layer is formed through high-temperature oxidation, seamlessly bonded with the alloy core.

Extended Lifespan: Offers superior wear resistance compared to standard stainless steel and ceramic-coated pins.

Excellent Thermal Shock Resistance: Maintains structural integrity and insulating properties even under rapid heating and cooling cycles.

Physical & Mechanical Properties

Property	Value / Specification
Base Material Hardness	HB 210 – 250
Surface Insulating Layer Hardness	Hv 600 – 800
Insulation Layer Thickness	15μm – 30μm
Breakdown Voltage	≥ 1000V (AC)
Max Working Temperature	Up to 1000°C
Standard Length	1000mm / 1500mm (Customizable)

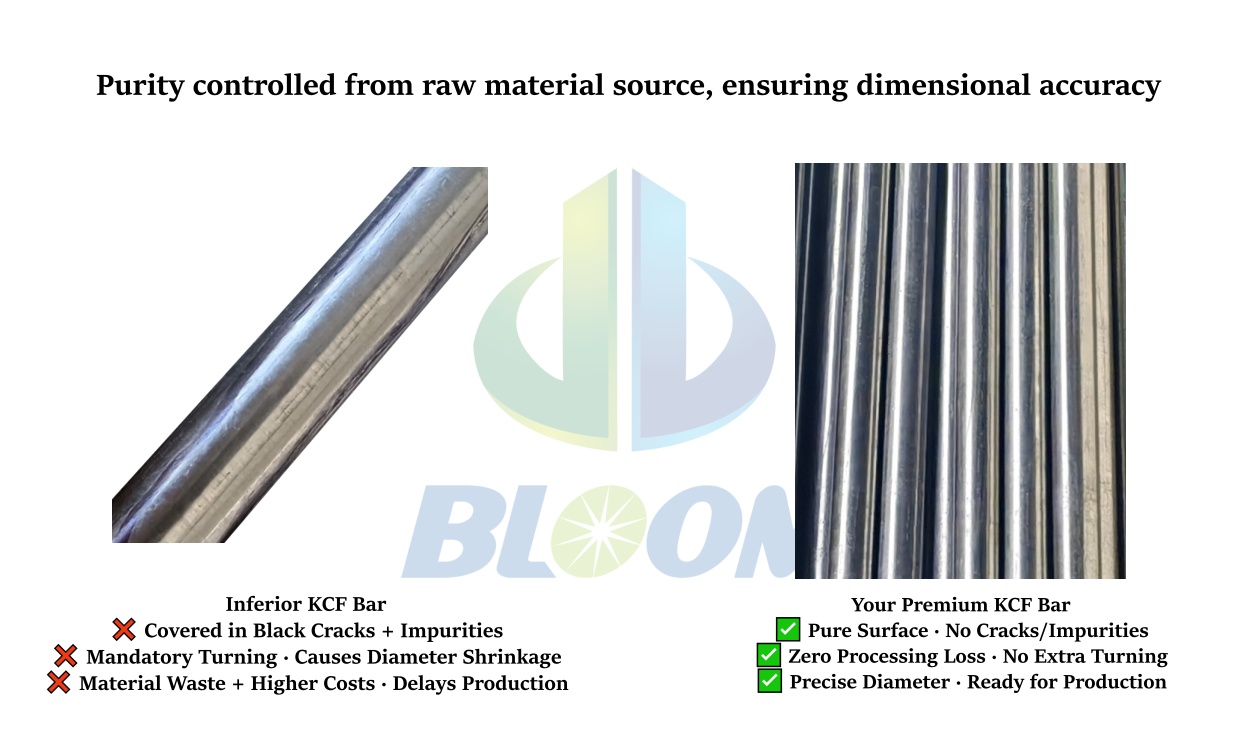

Quality Comparison: Our Premium KCF vs. Market Standard

Feature	Our Premium KCF Bars	Low-Cost Market Alternatives
Insulation Depth	Uniform 20-30μm, no blind spots	Uneven thickness, prone to voltage breakdown
Surface Finish	Smooth, scratch-free micro-structure	Rough surface, increases friction & wear on nuts
Core Toughness	Optimized heat-treatment, high impact strength	Brittle core, guide pins snap easily under pressure

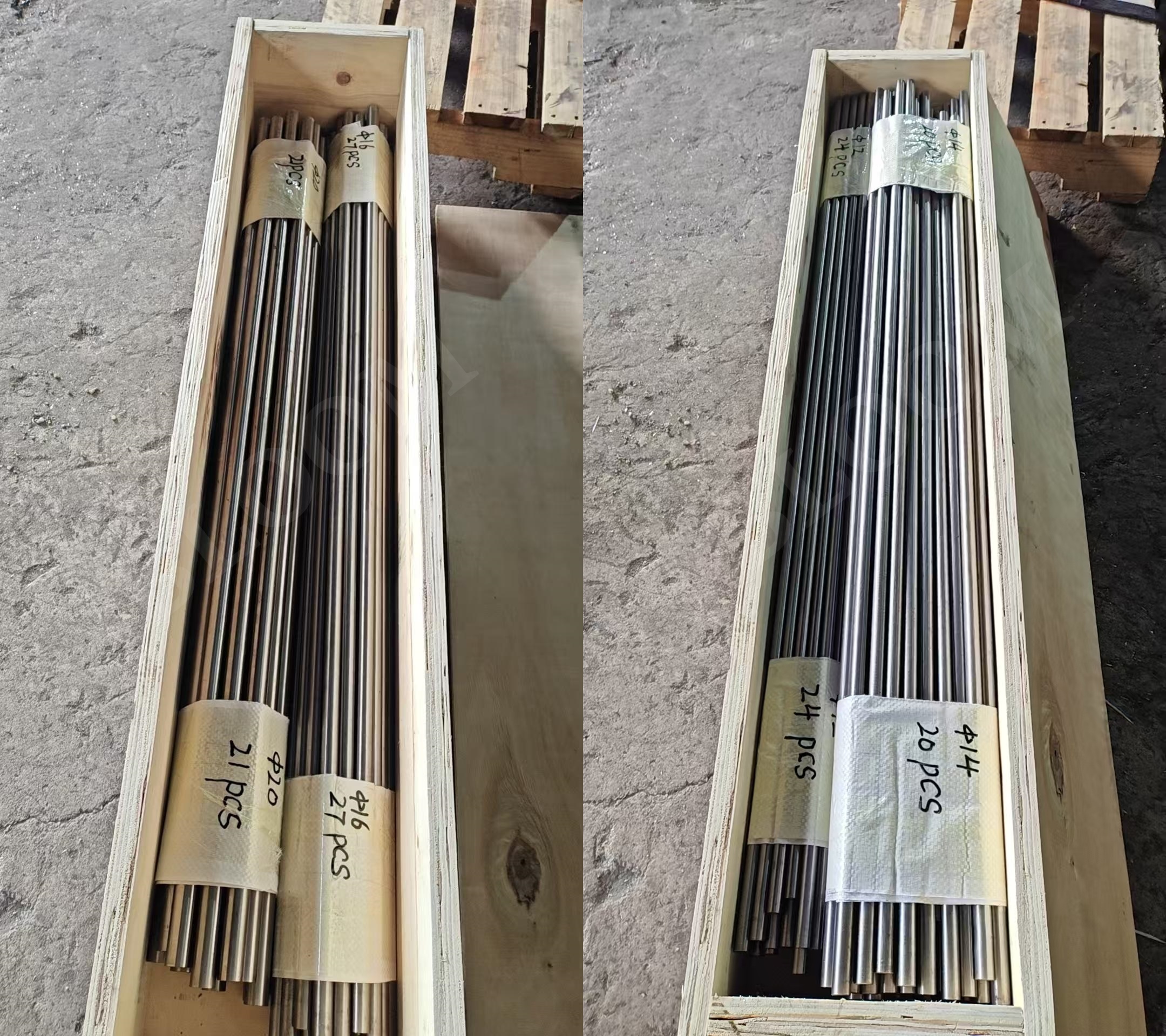

Factory Production & Global Shipments

As a direct manufacturer, we maintain a stable raw material inventory to ensure fast turnaround times for global clients. Every batch of KCF bars undergoes strict insulation testing and dimensional checks before packaging.
