Description

🔷 1. Premium Si3N4 Ceramic Material Blank Technology

When manufacturing advanced engineering components like mechanical seal rings, semiconductor processing tubes, or high-load hybrid ceramic bearings, material homogeneity is paramount. Any internal micro-voids or microscopic cracks within the raw ceramic rod will lead to catastrophic component failure under high-speed rotation or extreme thermal cycling.

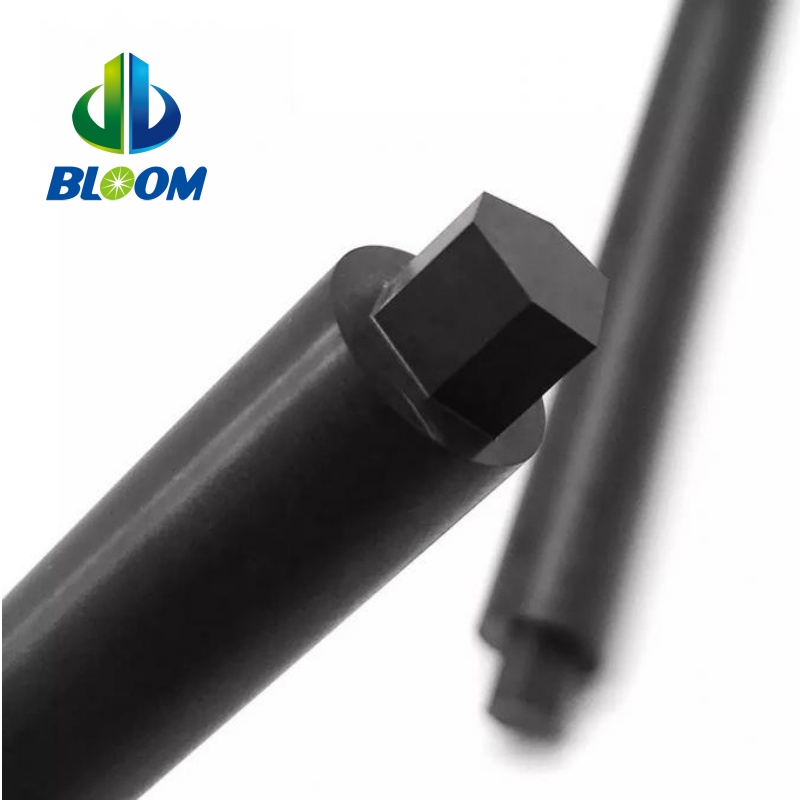

Bloom’s Industrial Silicon Nitride (Si3N4) Rods are processed via state-of-the-art Gas-Pressure Sintering (GPS) and Hot Isostatic Pressing (HIP) technologies. This achieves a near-theoretical relative density of ≥ 3.2 g/cm³, ensuring an ultra-fine, uniform crystalline structure. Our rods provide the ultimate machinability and mechanical reliability required for the most demanding technical ceramic applications.

🔷 2. The FABE Structural Advantage Breakdown

Features :
Ultra-Dense GPS-Si3N4 Formulation: Near-zero porosity with a density rating of ≥ 3.2 g/cm³.
Exceptional Fracture Toughness: Engineered with a toughness of 6.0-8.0 MPa·m^(1/2) to resist chipping during turning/grinding.
Extreme Surface Capability: Available as rough-sintered blanks or pre-ground blanks finished to **Ra ≤ 0.4 μm.
Broad Dimensional Matrix: Available in outer diameters (OD) ranging from 5mm to 100mm and standard lengths up to 300mm (custom sizes upon request).

Advantages:
Superb Machining Allowance Control: Tight dimensional straightness and diameter tolerances to significantly minimize your diamond wheel grinding time and material waste.
Outstanding Thermal & Shock Shield: Can endure rapid thermal fluctuations up to 800°C without undergoing thermal stress cracks.
Unmatched Fatigue Life: Exhibits excellent anti-friction properties and high fatigue limits, making it the ideal raw material for heavy-duty roller bearings.
Native Chemical Inertness: 100% resistant to strong acids, alkaline chemical wash solutions, and molten non-ferrous metals.

Benefits:
Maximizing CNC Processing Yield: Lowers machining scrap rates caused by hidden material voids, maximizing your internal production output.
Boosting Component Performance: Finished tubes and bearing rollers made from our rods achieve a 500% longer operational life than steel counterparts in high-load, unlubricated, or corrosive environments.
Substantial Cost Savings: Sourcing direct from Bloom’s factory removes mid-tier distributor markups, reducing your initial industrial raw material procurement costs.

Evidence:
100% ultrasonic and dye-penetrant tested for internal structural integrity. Fully certified for mechanical and chemical properties, serving top-tier bearing manufacturers and technical ceramic precision machine shops globally.

🔷 3. Technical Specifications Table

These structural parameters are fully optimized for seamless copying directly into your Word technical datasheets:

Technical Property	Industry Standard Value	Word-Ready Format (For Copying)
Material Matrix	Gas-Pressure Sintered Silicon Nitride (Si3N4)	GPS-Si3N4 Advanced Ceramic
Bulk Density	≥ 3.22 g/cm³	≥ 3.22 g/cm³
Vickers Hardness	≥ 1400 HV0.5 / HRA 89-91	≥ 1400 HV
Fracture Toughness	6.0 – 8.0 MPa·m^(1/2)	6.0-8.0 MPa·m^(1/2)
Flexural Strength	≥ 750 MPa (At room temperature)	≥ 750 MPa
Thermal Conductivity	20 – 30 W/m·K (Excellent heat dissipation)	20-30 W/m·K
Maximum Operating Temp	1200°C (Maintains superb mechanical properties)	Up to 1200°C

🏢 5. Why Partner with Bloom (Suzhou) Material Co., Ltd.?

Based in the high-tech manufacturing hub of Suzhou, China, Bloom (Suzhou) Material Co., Ltd. combines advanced powder metallurgy R&D with precision diamond finishing workshop capabilities. We specialize in providing high-wear, thermal-resistant, and high-purity advanced ceramic solutions to global industrial customers.

We fully guarantee:

1. Zero Micro-Defect Security: 100% structural verification via internal non-destructive testing for peace-of-mind machining.
2. Flexible Sample & Prototype Prototyping: Low MOQ options on stock rod dimensions to support your engineering testing and sample qualifications.
3. Professional Export Logistics: Specialized shock-absorbing secure packaging to prevent transit fractures, paired with flexible DDP/FOB shipping terms.
