Description

The Superior Raw Material for Precision Welding Tooling
When producing internal components for high-volume resistance welding, projection welding, and automated nut-feeding systems, conventional steel or alloy bars frequently lead to electrical short circuits, rapid thermal wear, and costly production downtime.

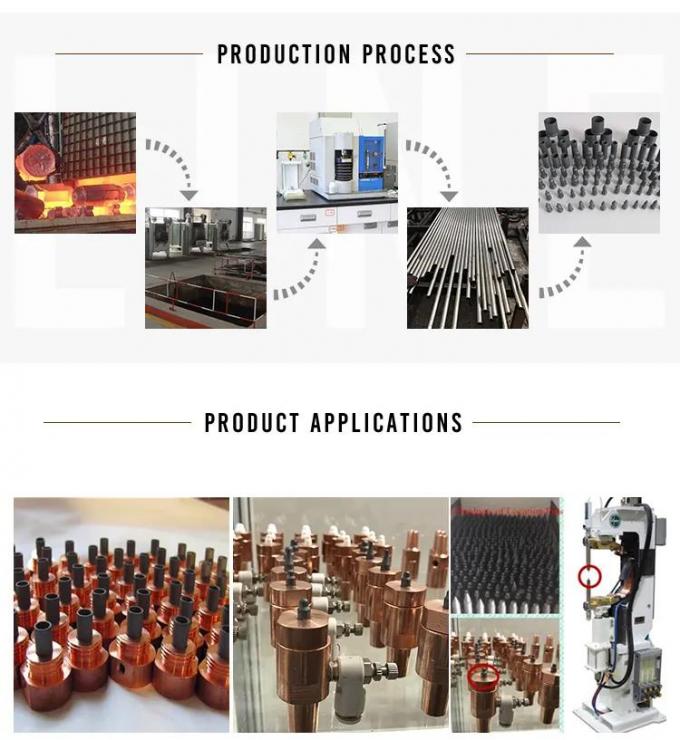

Our High-Performance KCF Alloy Rod Stock is specifically engineered to eliminate these heavy manufacturing challenges. Created through an advanced high-temperature thermal diffusion process, the outer matrix develops a robust, stable insulation skin while keeping the internal core exceptionally tough. This makes it the ideal raw stock for machinists and factory engineers fabricating custom guide pins, locating sleeves, and specialized bushings.

Key Advantages & Customer Pain Points Solved:
Built-In Stable Insulation Skin: Unlike standard metal bars that conduct electricity uniformly, KCF alloy features a specialized surface insulation layer (typically 8–15 μm) that completely prevents stray current shunting during the welding process.

Exceptional Core Toughness & Wear Resistance: Combines a high-hardness boundary layer with superior core fracture toughness, standing up to intensive mechanical friction and thermal shock far better than standard copper or mild steel.

Cost-Effective Alternative to Technical Ceramics: Delivers the non-wetting performance and high heat tolerance of industrial ceramics, but with significantly better impact resistance and much easier in-house machinability at a fraction of the cost.

Flexible Custom Machining: Fully compatible with standard metal-turning operations, allowing precise fabrication into custom pins and sleeves tailored to exact fixture requirements.

Performance Metrics	Standard Steel / Alloy Bars	Our KCF Alloy Rod Stock
Surface Electrical Property	Fully conductive (Triggers current leakage and shunting)	Features a stable insulation skin (Blocks unwanted current)
Wear & Mechanical Toughness	Prone to rapid grooving and wear under continuous friction	High wear resistance combined with superior core toughness
Thermal & Oxidation Stability	Softens and scales rapidly in continuous high-heat zones	Excellent high-temperature and oxidation stability
Machinability vs. Brittleness	Easy to machine, but lacks electrical isolation	Excellent machinability paired with ceramic-like surface properties

Specification Parameter	Technical Details / Range
Alloy Matrix Composition	Iron-chromium based alloy base (Cr, Al, Ti, Zr, Ni, Fe balance)
Insulation Skin Thickness	Optimized stable skin layer (Typically 8–15 μm range)

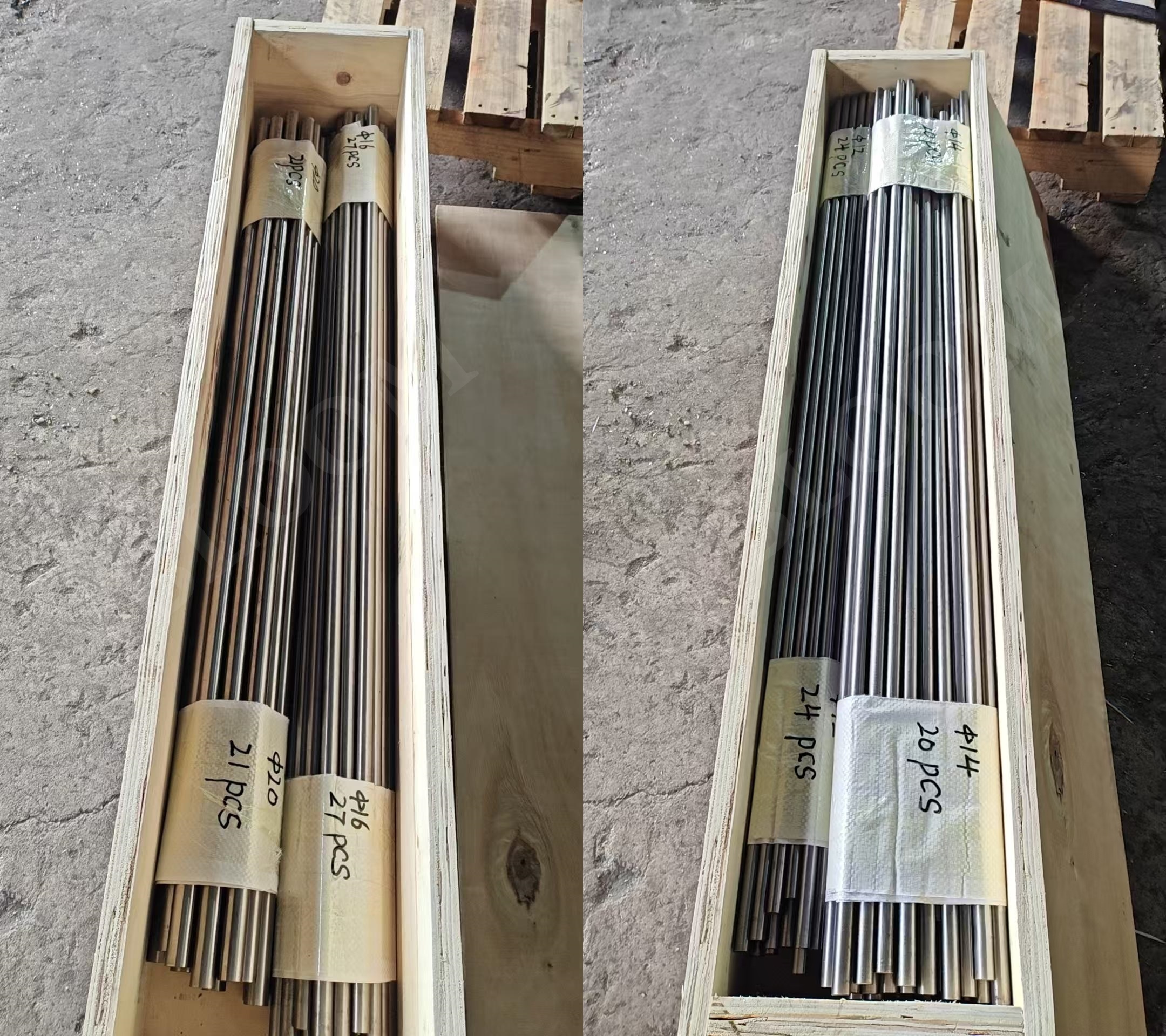

Available Standard Diameters	10 mm, 12 mm, 13 mm, 16 mm, 18 mm, 20 mm, 30 mm, 35 mm (Custom diameters up to 45 mm available)
Standard Rod Length	1000 mm (Custom cutting lengths available upon request)

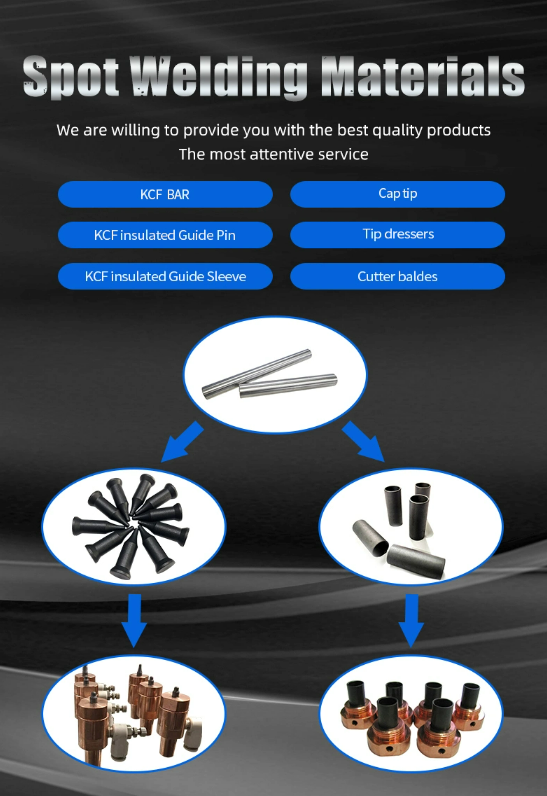

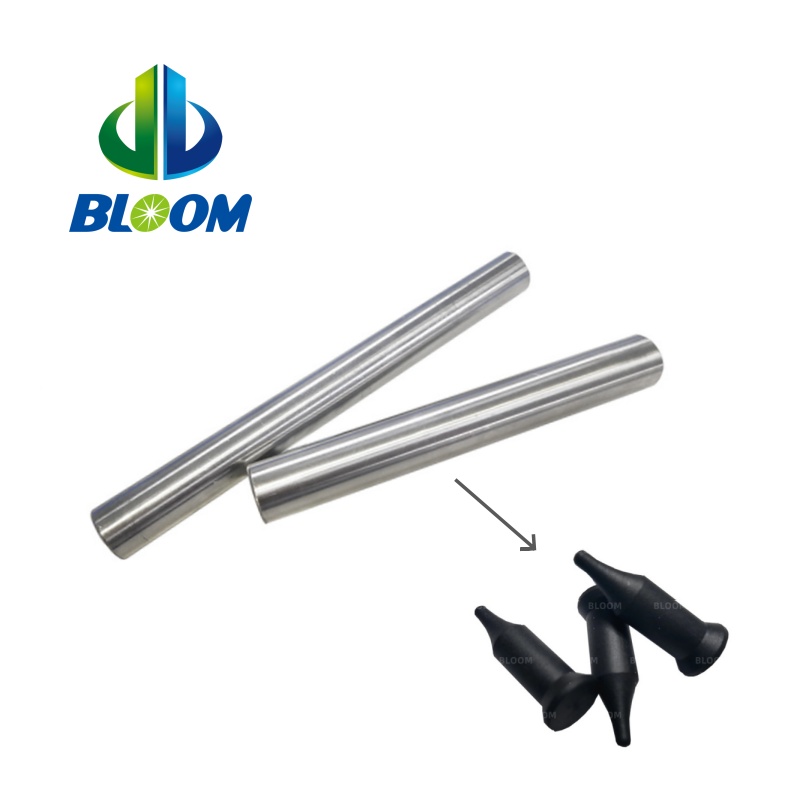

Primary Industrial Uses	Raw stock for manufacturing KCF guide pins, locating sleeves, and projection welding fixtures
