Introduction

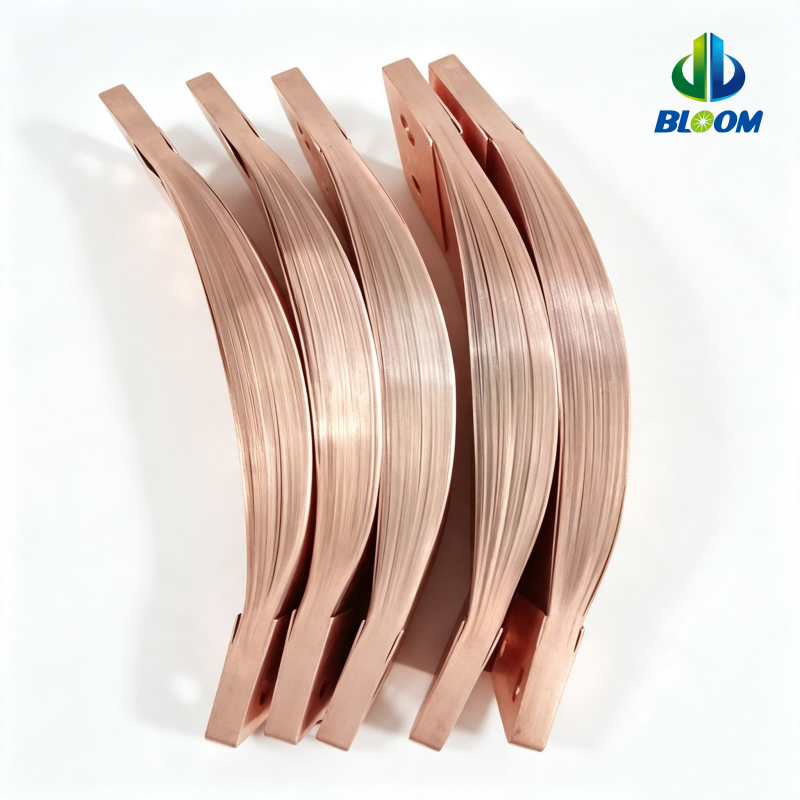

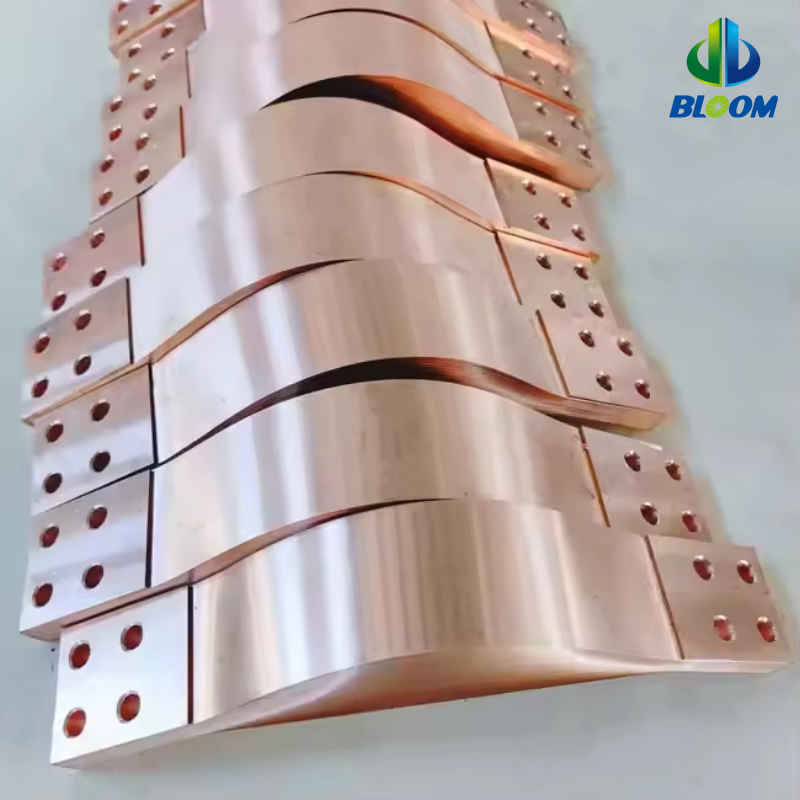

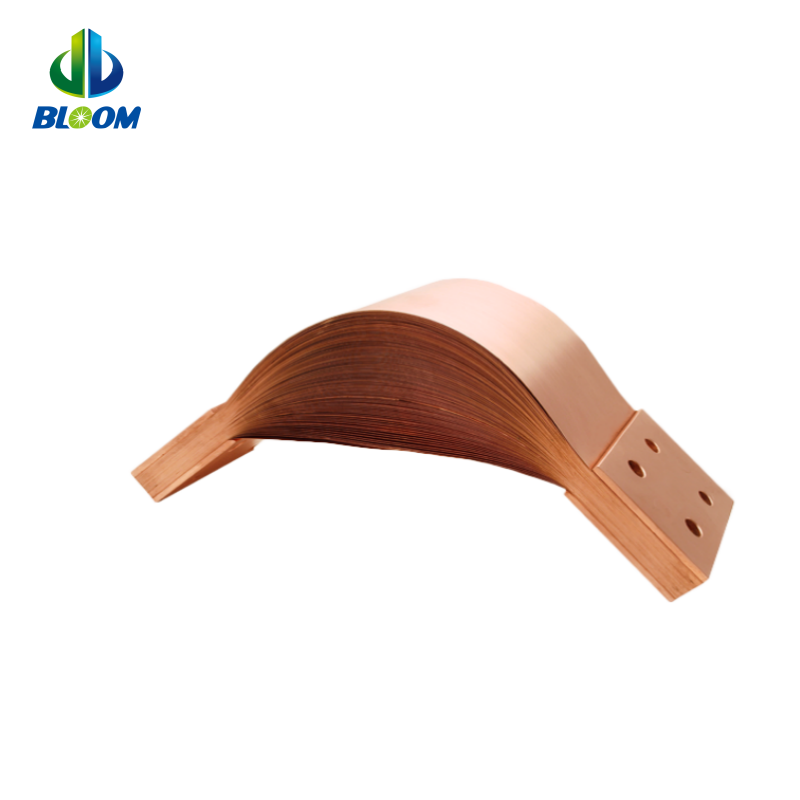

Maintain a dependable current path between the transformer and welding arm with this flexible laminated copper shunt. Built from multiple copper foils, it combines strong electrical transmission with the movement tolerance required in repetitive resistance-welding operations.

The flexible center section helps accommodate machine vibration and alignment variation, while the hot-pressure-welded end terminals create a secure connection for demanding production cycles. It is suitable for replacement parts, equipment upgrades, and newly designed spot-welding systems.

Technical Specifications

Item	Specification
Product Name	Flexible laminated copper shunt

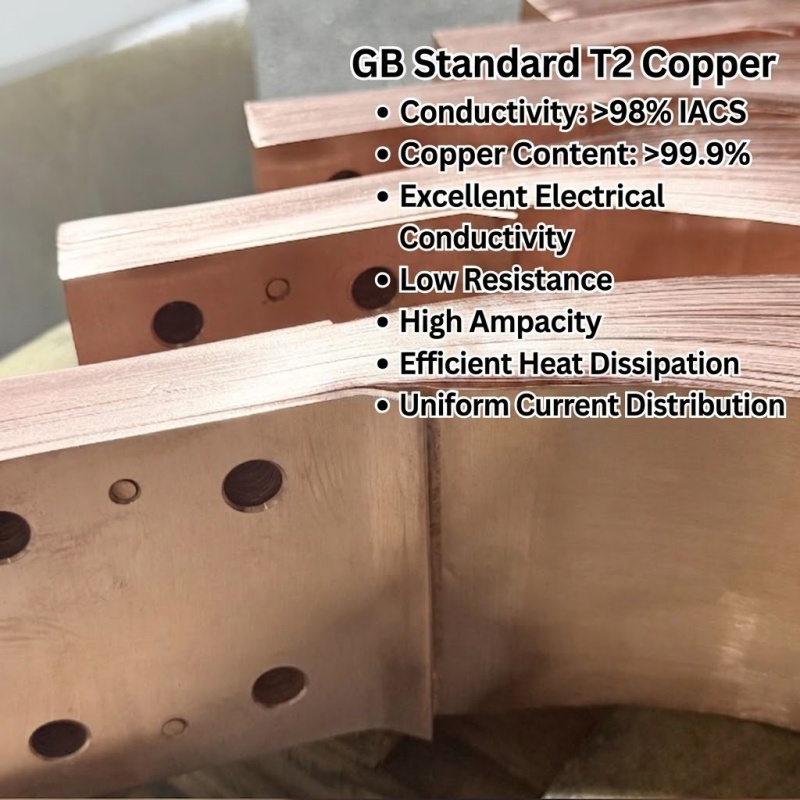

Main Material	High-conductivity T2 copper, copper content above 99%
Construction	Multi-layer laminated copper foil structure
Terminal Process	Hot-pressure welding
Surface Options	Bare copper or tin plating
Electrical Conductivity	More than 98%
Key Characteristics	High current capacity and high fatigue strength
Working Environment	Continuous high-current resistance spot welding
Dimensions	Standard sizes or customized to drawing
Custom Options	Length, width, foil layers, terminal and mounting-hole details

Detailed photos

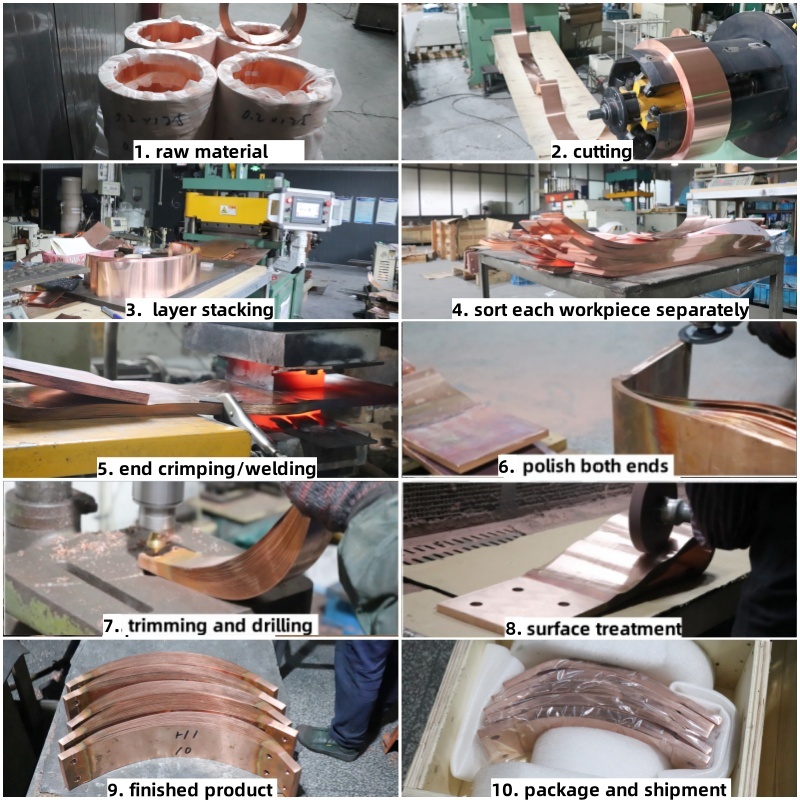

Production process

Applications

Transformer-to-welding-arm current connections
Automotive body and component welding lines
Resistance spot welders used for sheet-metal assembly
Machinery fabrication and metalworking equipment
Replacement flexible connectors for welding fixtures
