Description

Product Details

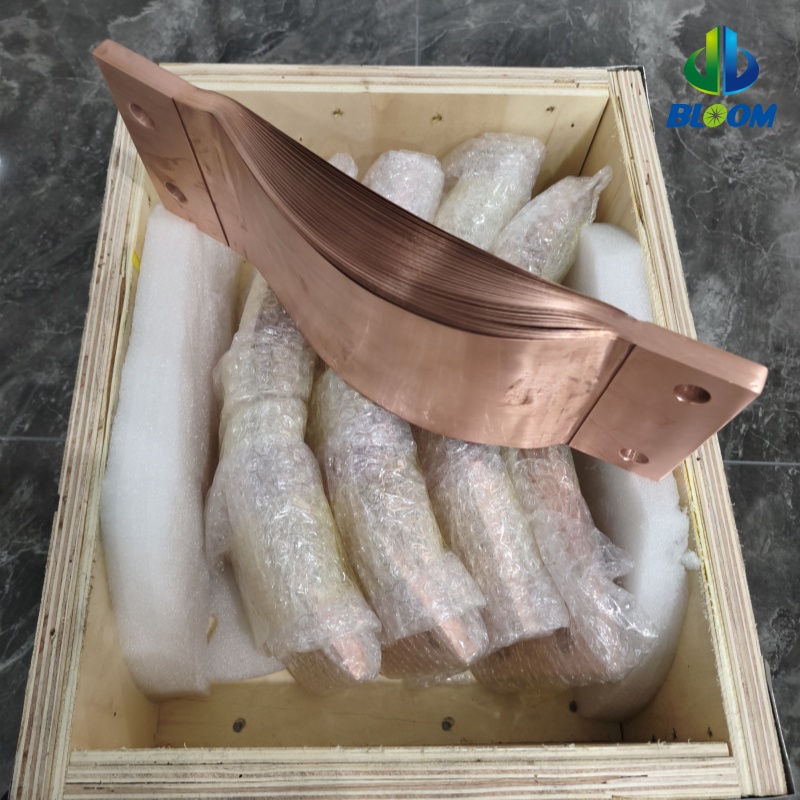

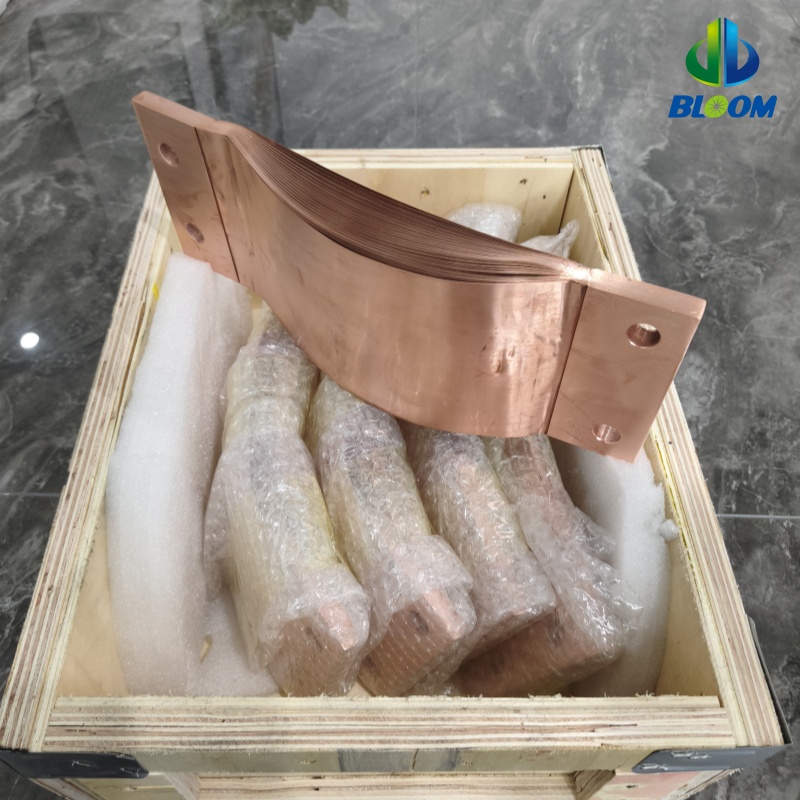

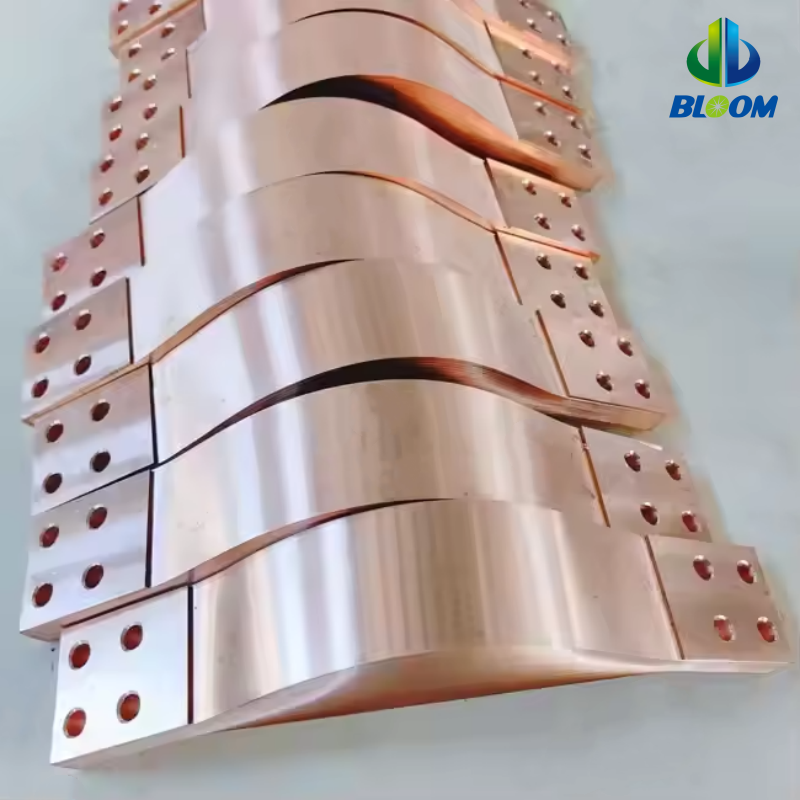

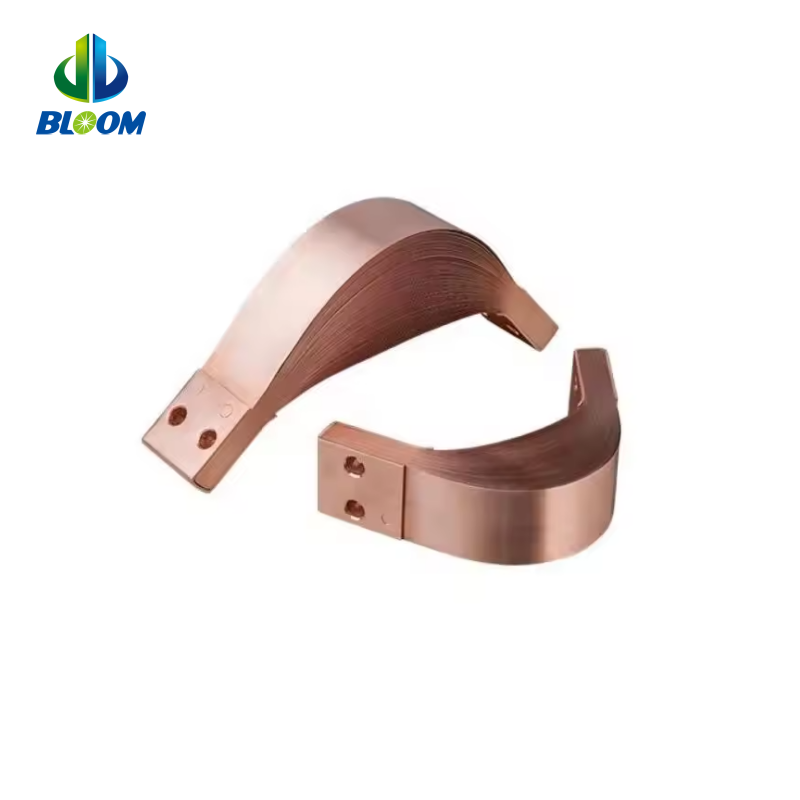

Laminated copper flexible shunt is a core conductive component specially developed for resistance‑welding equipment. It is manufactured by stacking multiple thin high‑purity copper foils, with both terminals hot‑pressure welded into integrated solid terminals. It serves as flexible busbar between welding transformer and welding arm of spot‑welding machines.

The flexible multi‑layer structure compensates mechanical displacement and absorbs vibration generated during continuous welding cycles, realizing stable heavy‑current transmission. Both standard parts and full‑customized solutions according to customer drawings are supported.

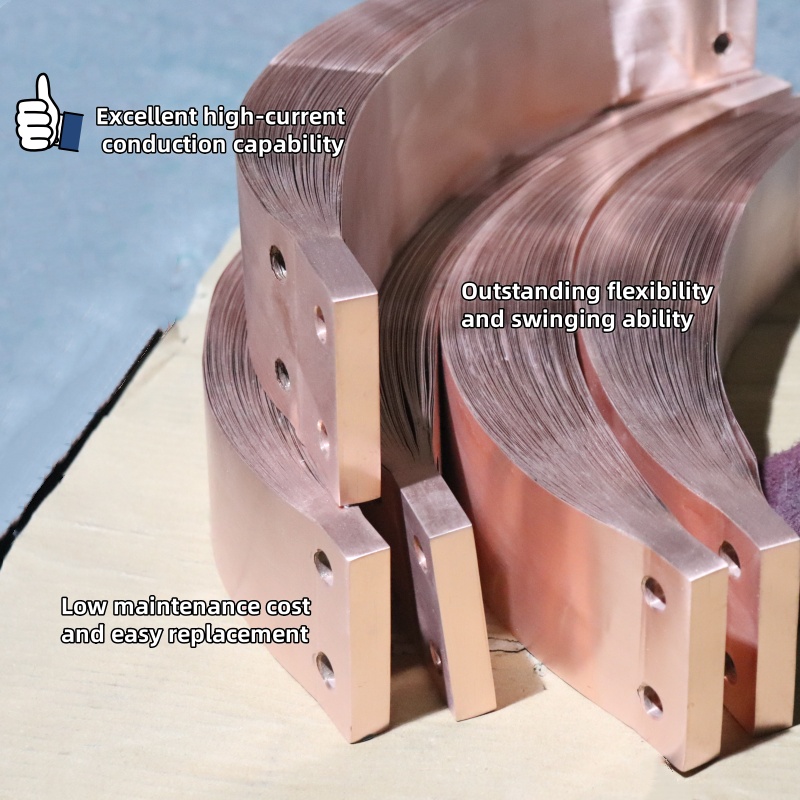

Core Features

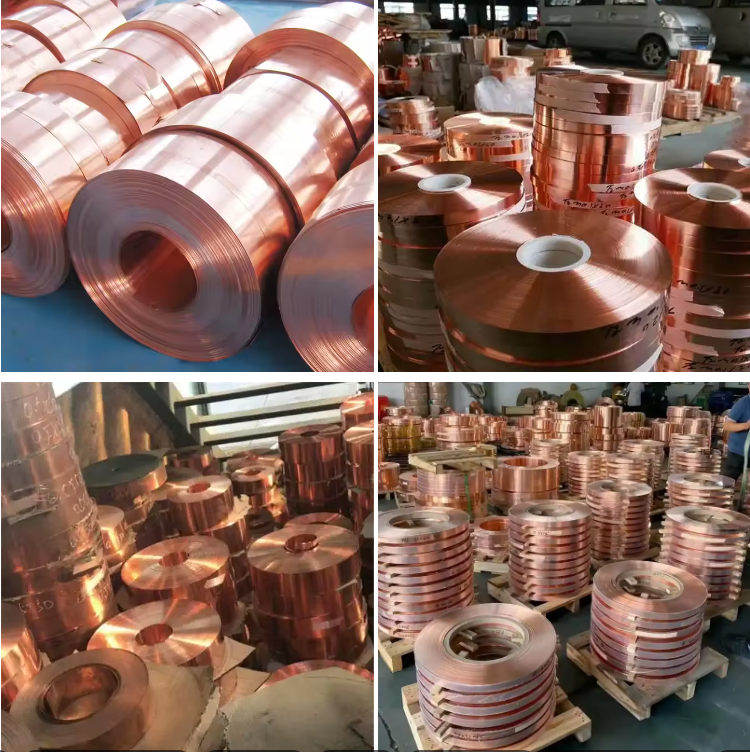

1. Adopt high‑purity T2 copper foil raw material, excellent electrical conductivity and low power loss.
2. Multi‑layer laminated flexible structure, offsets position deviation and dampens vibration.
3. Terminals with hot‑pressure welding process, high bonding strength, no layer separation.
4. Good heat dissipation performance, effectively reduces temperature rise under long‑term high‑current working condition.
5. Optional surface finish: bare copper or tin‑plating for anti‑oxidation.
6. Fully customizable: length, width, foil layers, mounting hole dimension and shape can be adjusted as per requirements.
7. High fatigue strength, stable performance for continuous welding working scenarios.

Technical Parameters

Item	Specification
Model No.	BLM‑S
Material	High‑conductivity T2 copper
Copper Content	≥99%
Structure	Multi‑layer laminated flexible copper shunt
Terminal Processing	Hot pressure welding
Shape	Square (customizable shape available)
Certification	GB Standard
Surface Treatment	Bare copper / Tin‑plated (optional)
Key Selling Points	High‑current conduction, high fatigue strength
Condition	Brand New

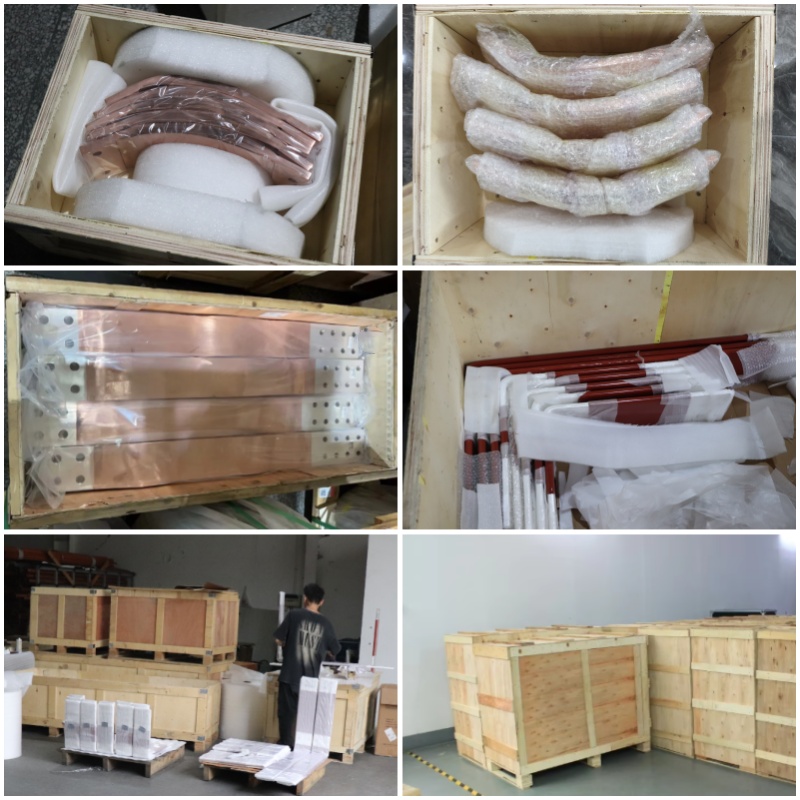

Transport Package	Wooden Case
Package Dimension	50.00cm × 50.00cm × 30.00cm
Gross Weight	80.00kg
Customization	Support OEM / ODM, laser marking customer logo/code

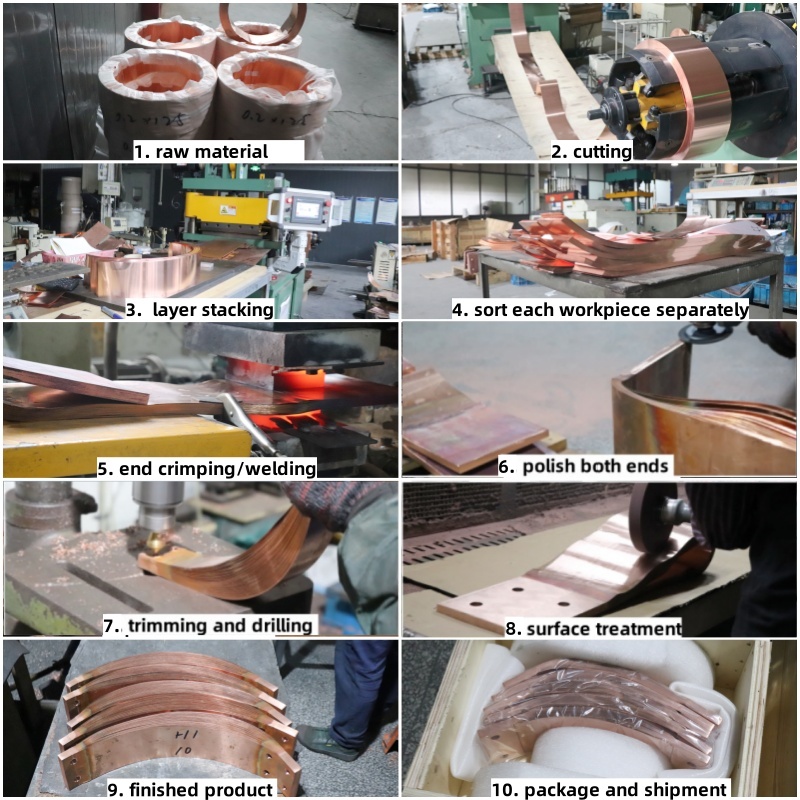

Production process

Applications

1. Mainly used for **spot welding / resistance welding machinery**, connecting welding transformers and welding arms.
2. Applicable industries: welding equipment manufacturing, electric power & power transmission industry.

Supplier Info

Audited diamond‑member exporter, specialized in spot‑welding accessories & special alloy materials. Pre‑production sample & pre‑shipment final inspection available; QC report can be provided before delivery. Payment terms: T/T, L/C, PayPal etc.; Trade terms: FOB, EXW, CIF, DDP.
