Description

Introduction

Our integrated nut welding electrode system—comprising premium Nut Electrode Covers and heavy-duty Nut Electrode Holders—is designed to optimize your resistance welding efficiency. While the consumable cover delivers precise localized heat and protects nut threads from damage, the rugged water-cooled holder provides the rigid alignment and mechanical strength needed for continuous, high-repetition industrial welding. Together, they form a perfect synergy that minimizes spatter, reduces downtime, and ensures flawless weld nuggets.

Features

Optimal Thermal & Electrical Conductivity: Both components are machined from premium copper alloys, ensuring maximum current transfer with minimal power loss.

Advanced Internal Water-Cooling: The electrode holder features optimized cooling channels that rapidly dissipate heat, significantly extending the service life of the electrode cover.

High Wear & Deformation Resistance: Built to withstand extreme welding temperatures and intense pneumatic/hydraulic press forces without losing structural integrity.

Precise Coaxial Alignment: Guarantees strict concentricity between the nut, locating pin, and sheet metal, completely eliminating off-center or weak welds.

Quick-Change Design: Standardized tapered or threaded connections allow for effortless cover replacement, minimizing assembly line downtime.

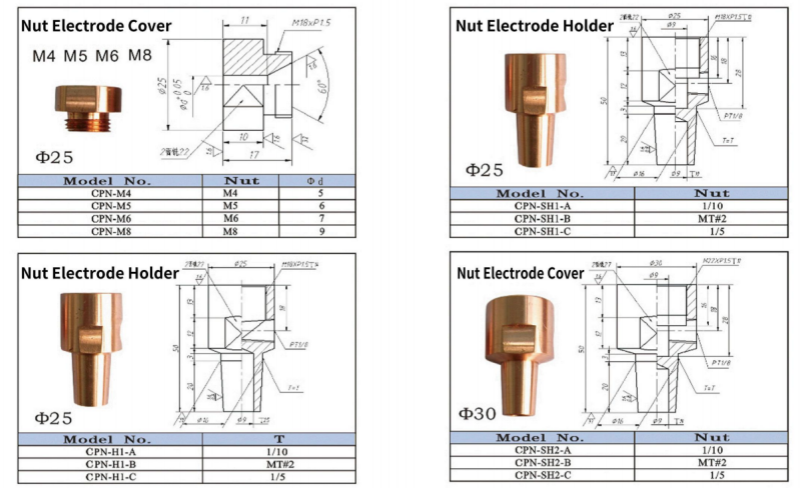

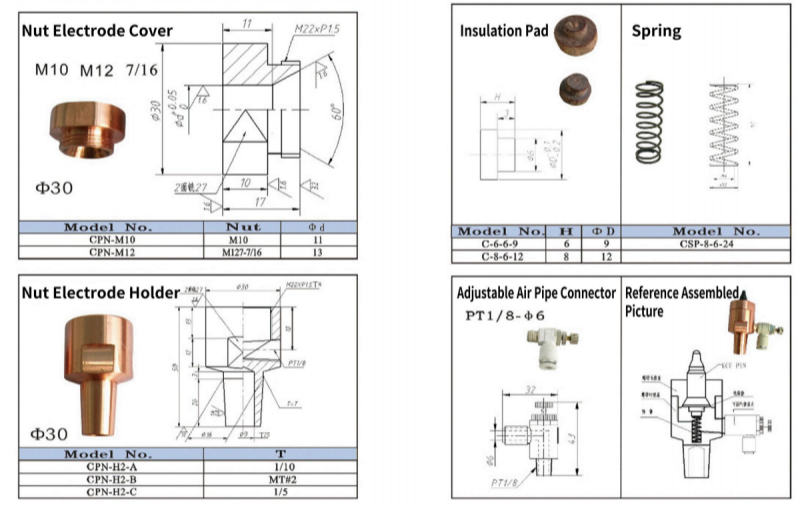

Catalog Drawing

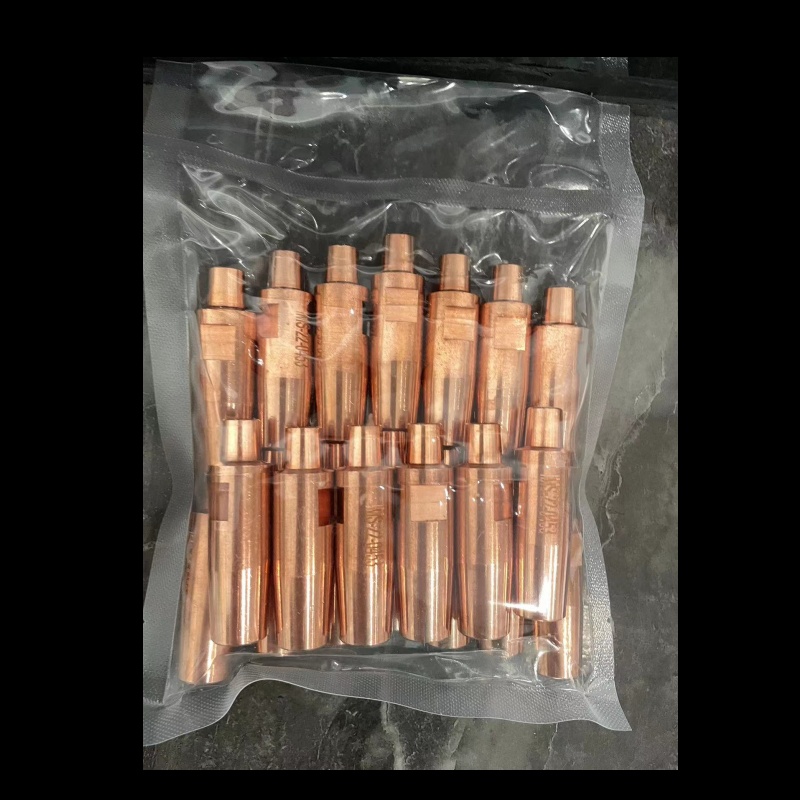

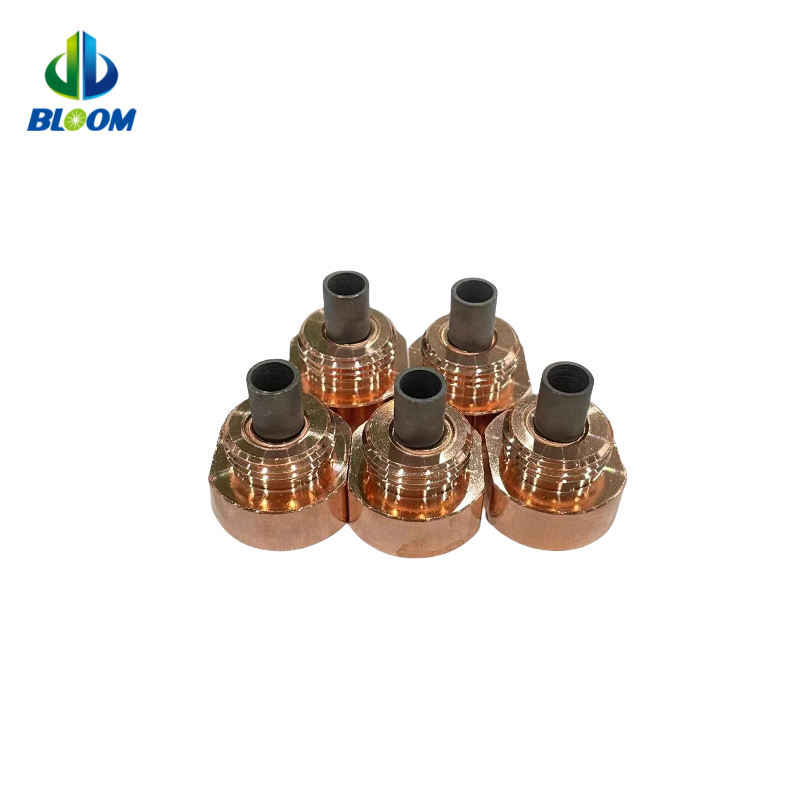

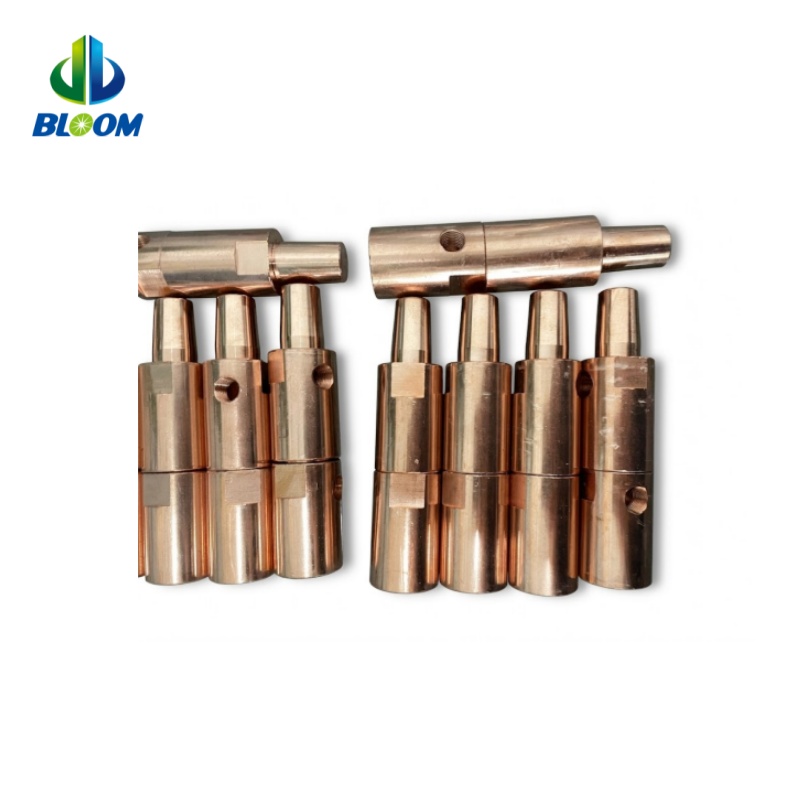

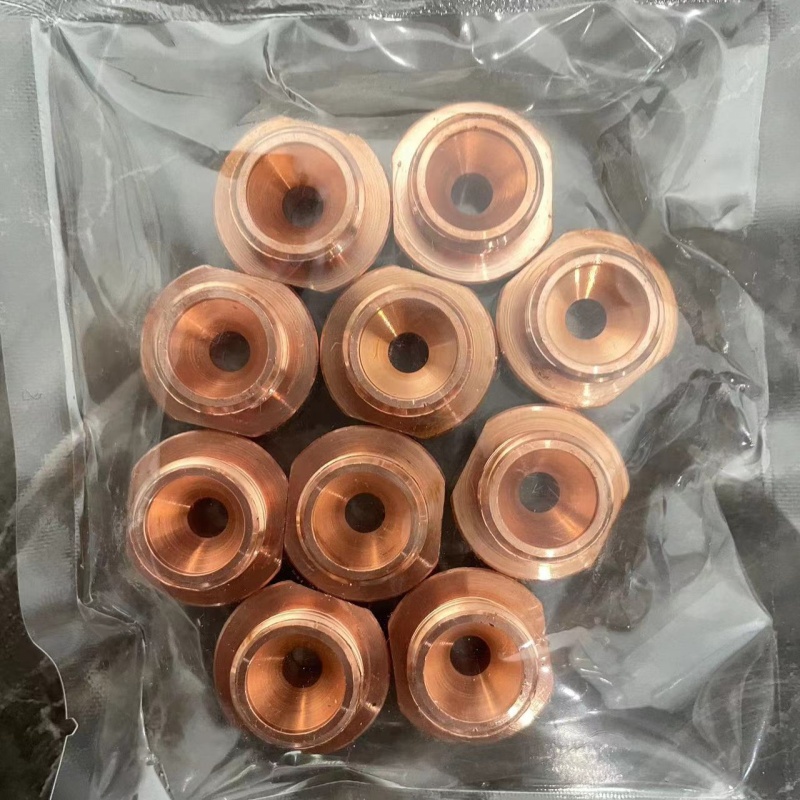

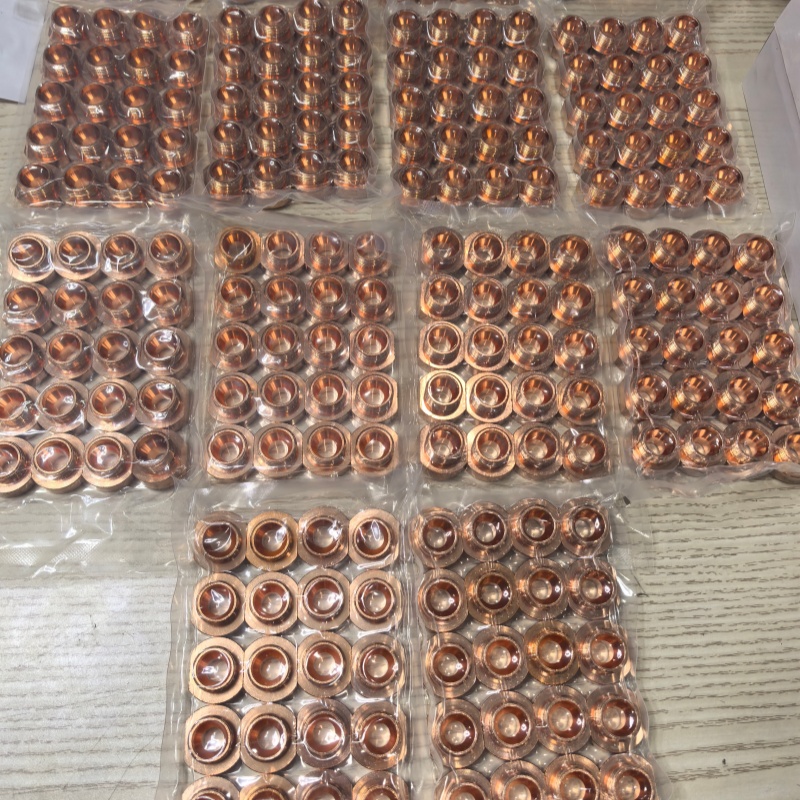

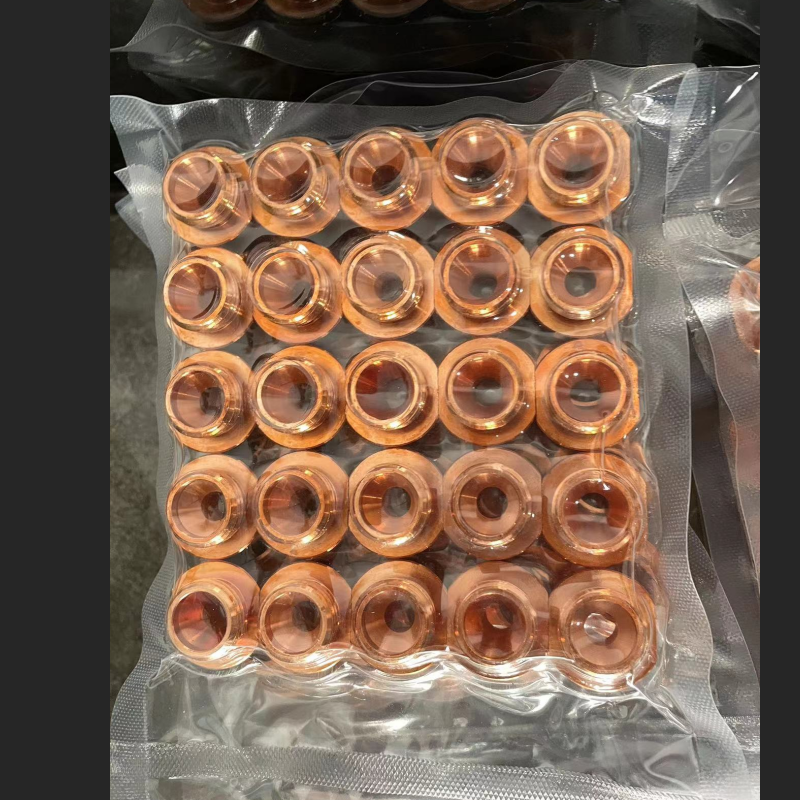

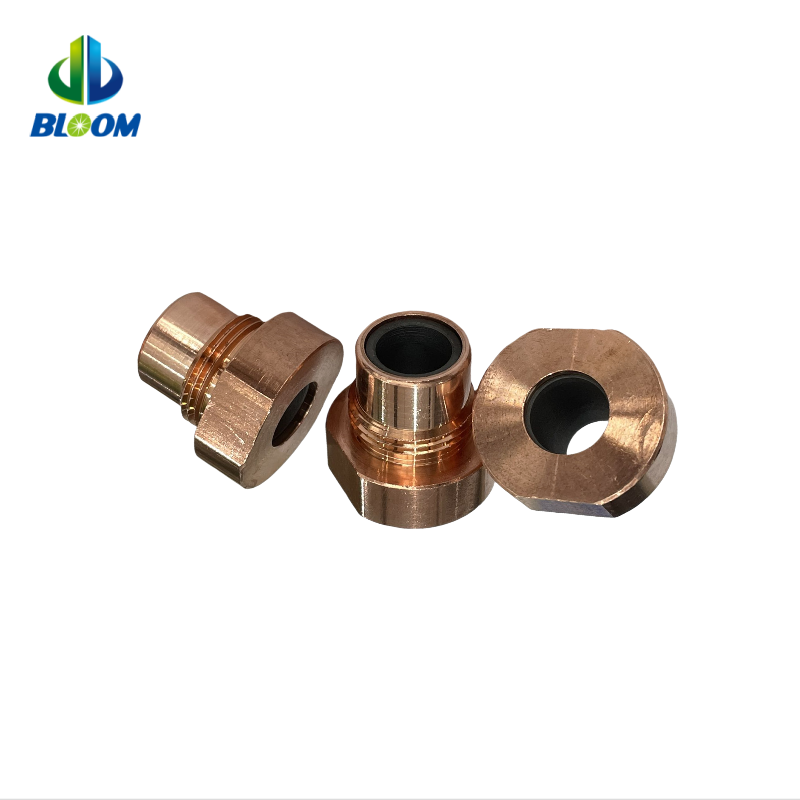

Product shows

Applications

This high-efficiency electrode combination is widely used in automated and manual projection welding setups across industries:

Automotive Manufacturing: Critical for Body-in-White (BIW), chassis, crossbeams, and seat frame nut-welding lines.

Sheet Metal Fabrication: Perfect for manufacturing precision enclosures, server racks, and industrial cabinets.

Household Appliances: Used in high-volume production lines for washing machines, refrigerators, and HVAC units.

Heavy Machinery: Ideal for heavy-duty structural fastenings requiring deep, high-strength welds.
