Introduction

This copper laminated shunt is designed for users who need a current connector tailored to their welding equipment rather than a one-size-fits-all part. Its layered foil body provides the flexibility needed between moving machine sections, and its consolidated terminal zones are made for secure installation.

The configuration can be adapted according to connection layout and operating conditions. Length, width, foil quantity, end shape, surface finish, and mounting-hole arrangement can be confirmed from a drawing or sample before production.

Technical Specifications

Item	Specification
Item Name	Custom flexible copper laminated shunt

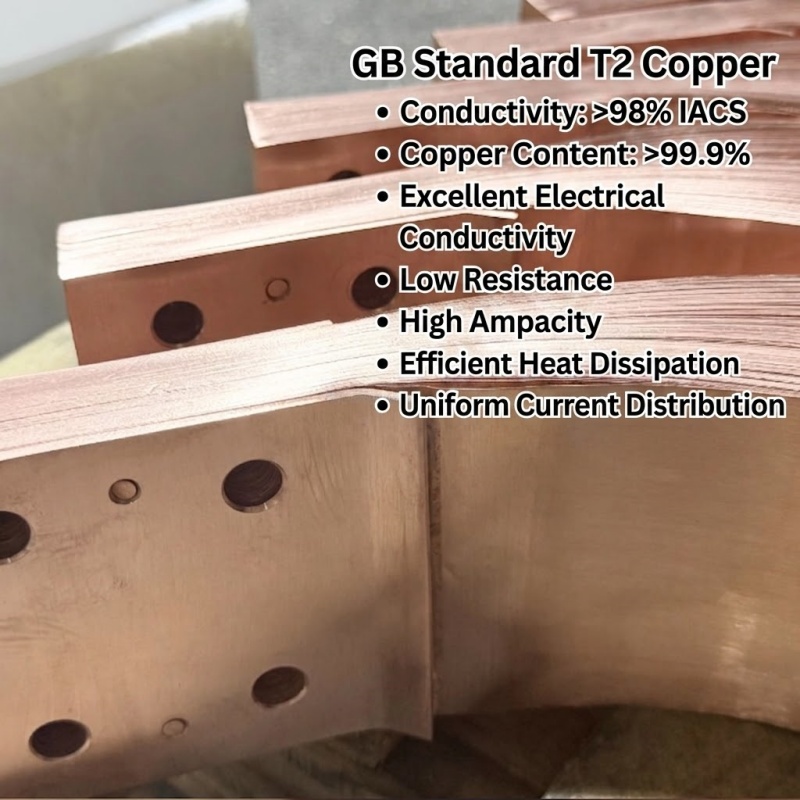

Base Metal	High-conductivity T2 copper
Internal Form	Multiple laminated copper foil layers
Terminal Bonding Method	Hot pressure welding
Available Finish	Natural copper / tin-plated copper
Electrical Performance	Conductivity greater than 98%
Intended Duty	High-amperage transfer in resistance-welding circuits
Mechanical Feature	Flexible body with fatigue-resistant performance
Size Availability	Standard or made to customer requirements
Information for Customization	Drawing, sample, dimensions, mounting details, and working conditions

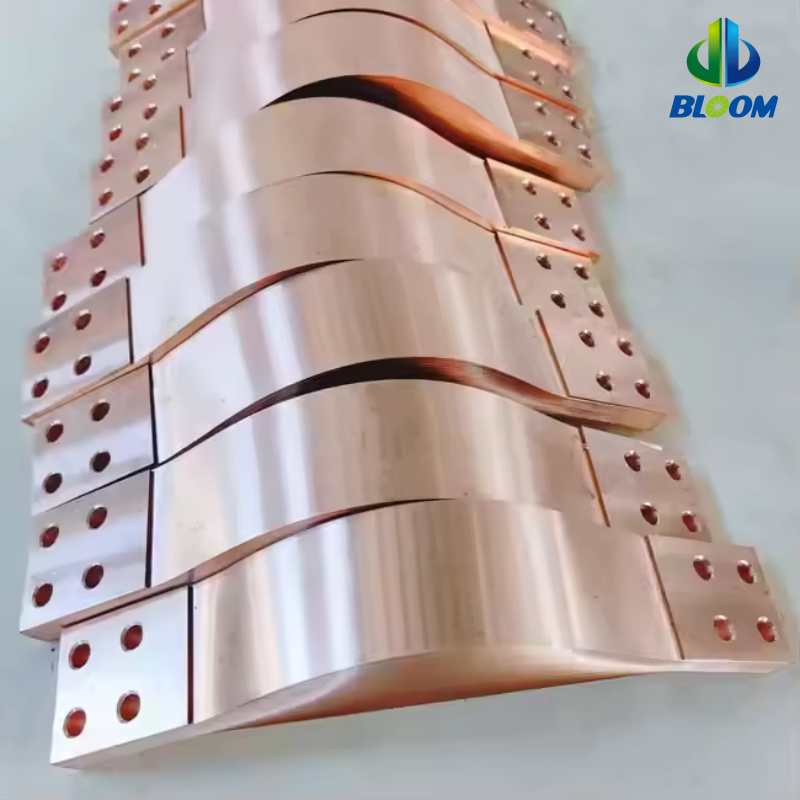

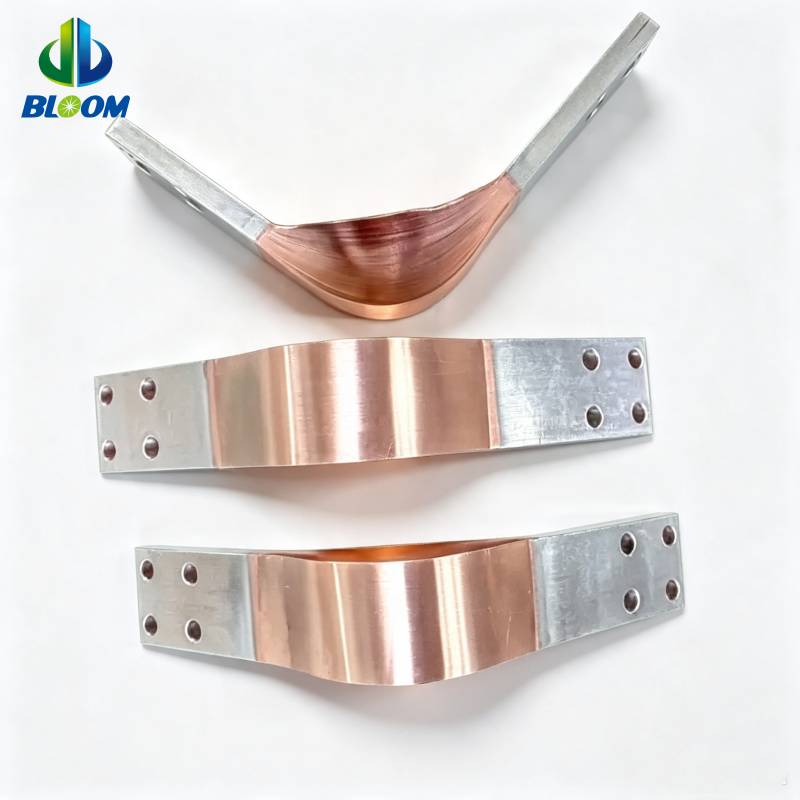

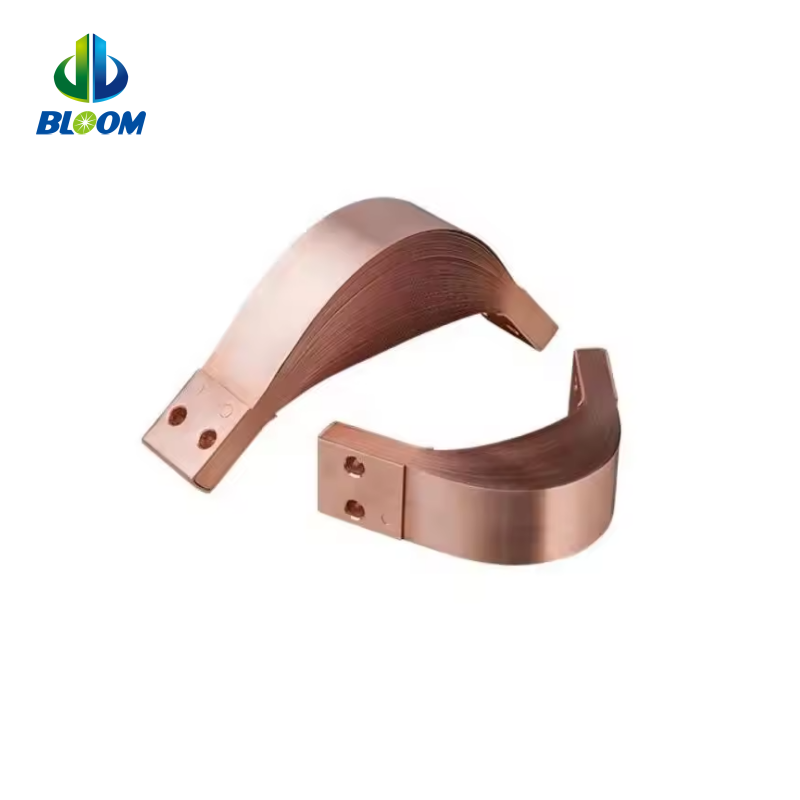

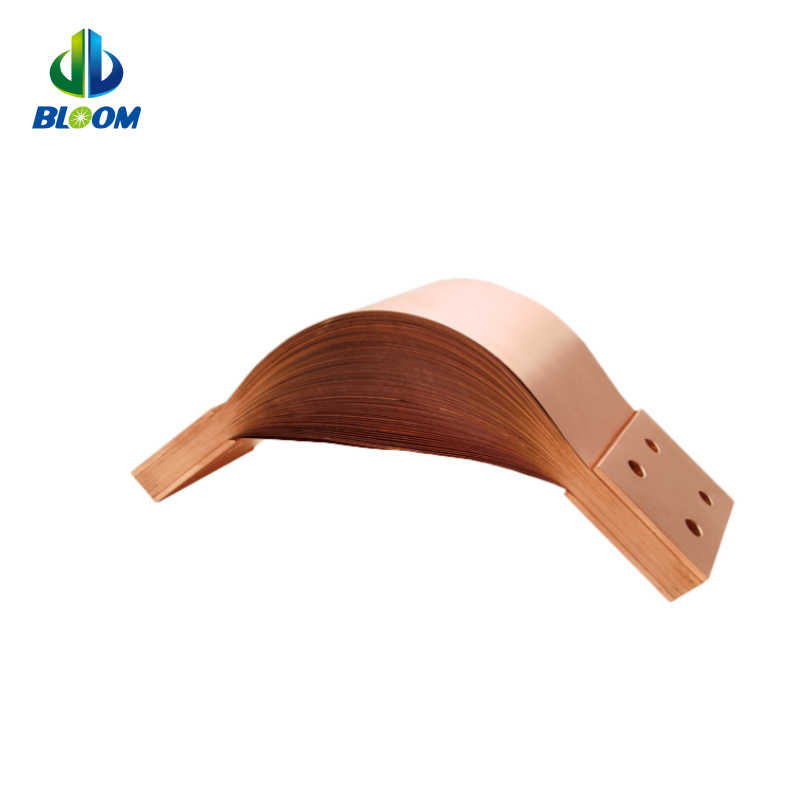

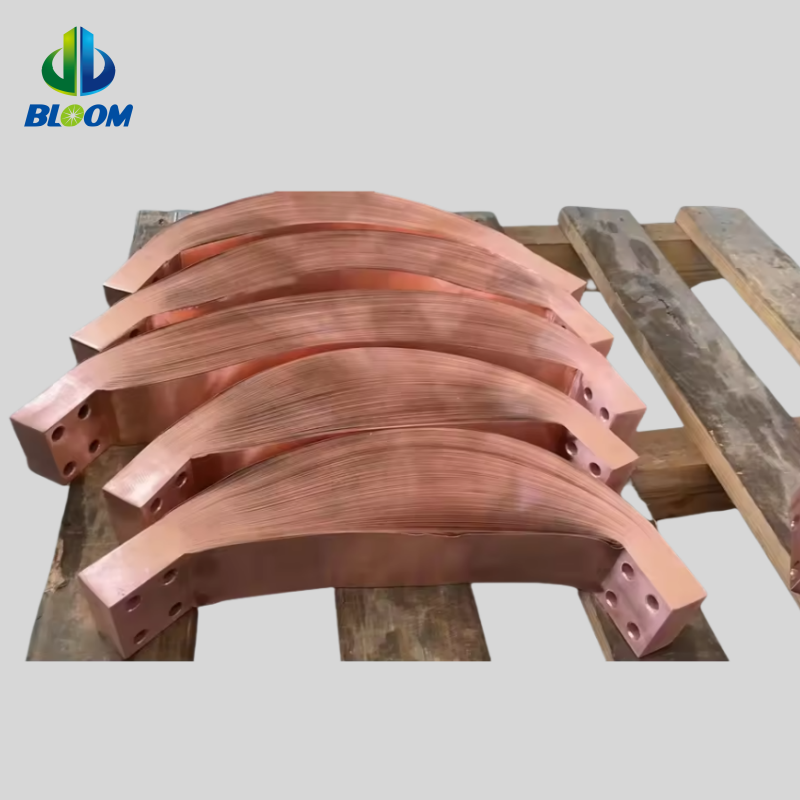

Detailed photos

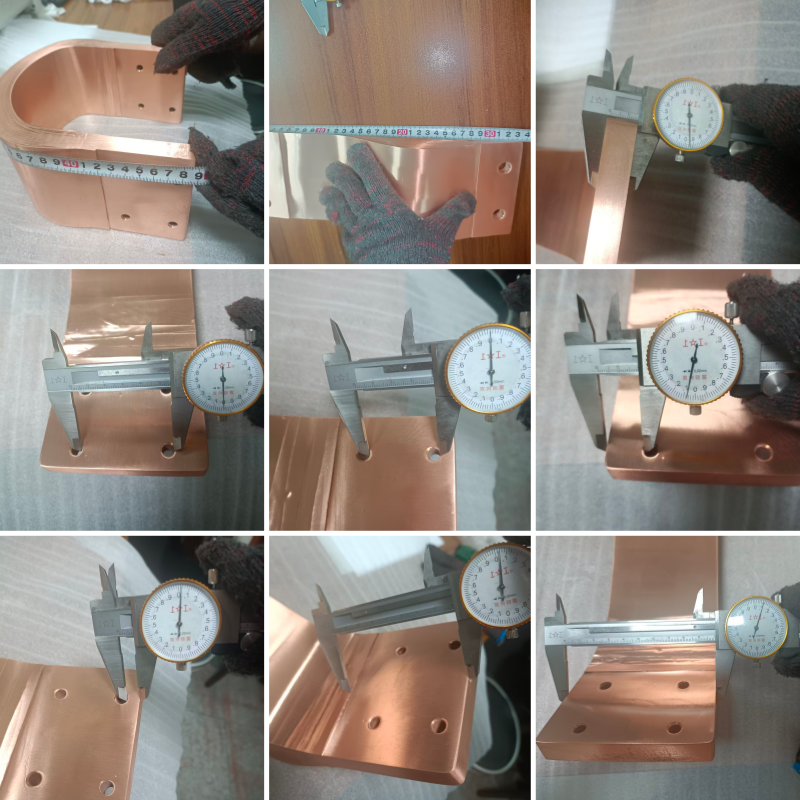

QC

Applications

Custom-built spot welders and welding fixtures
High-current links between transformer secondary circuits and arms
Automotive assembly equipment and metal-component production
Repair and retrofitting of resistance-welding systems
Manufacturing lines with limited installation space or special terminal geometry
